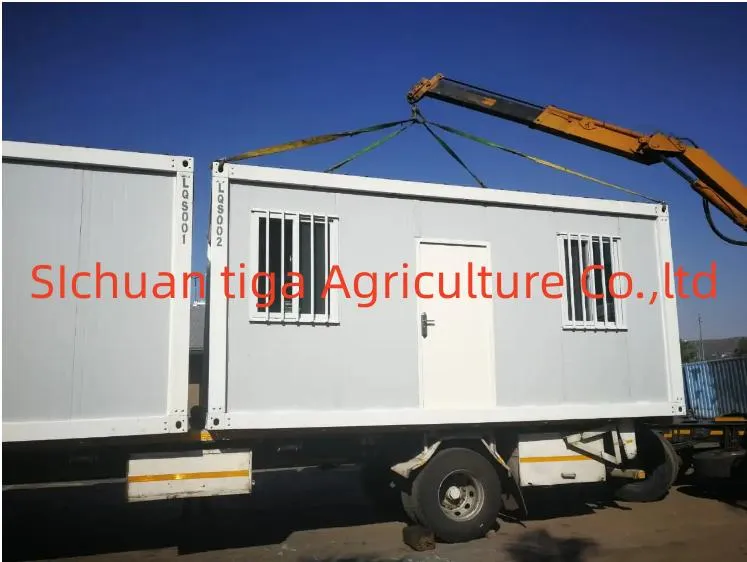

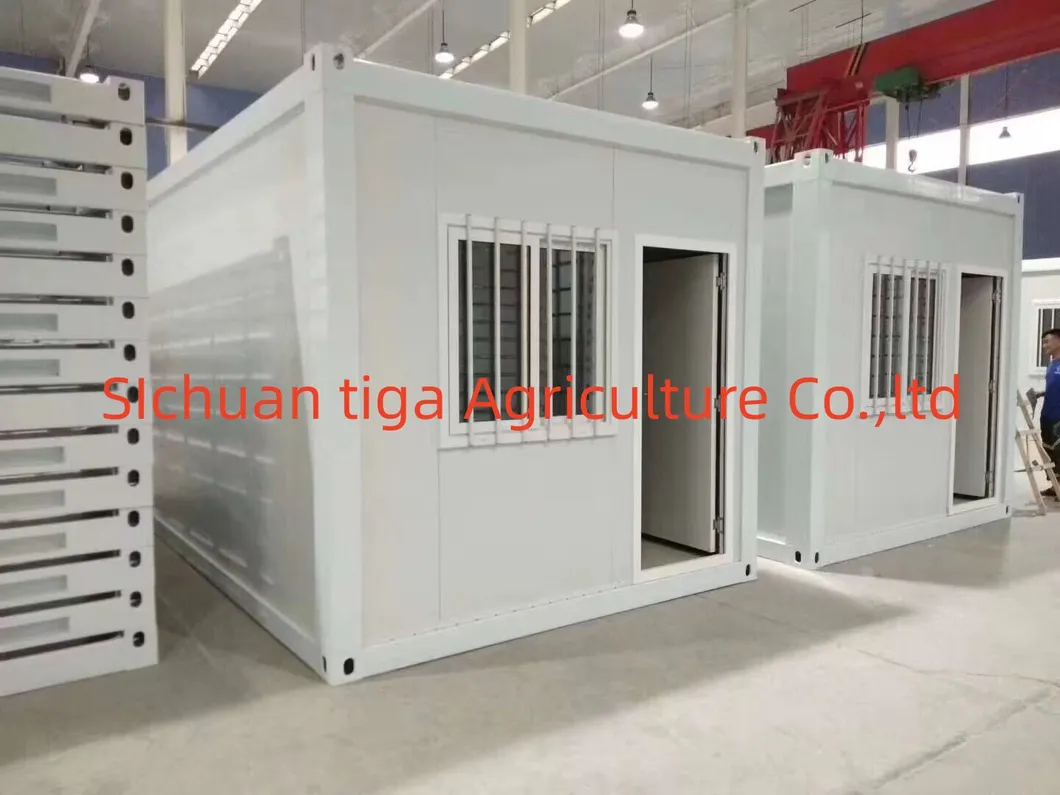

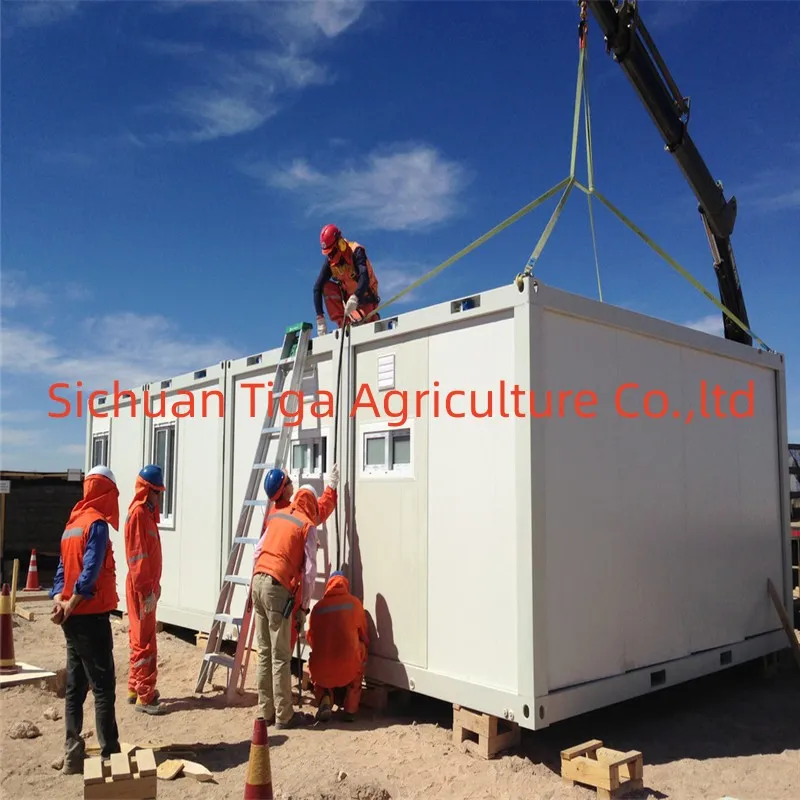

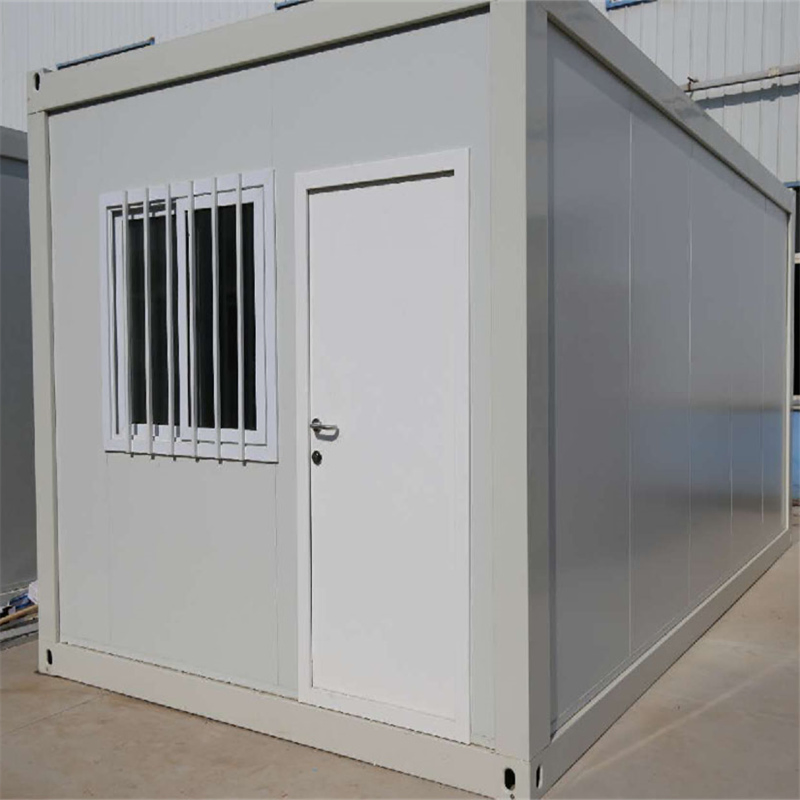

Container house is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.

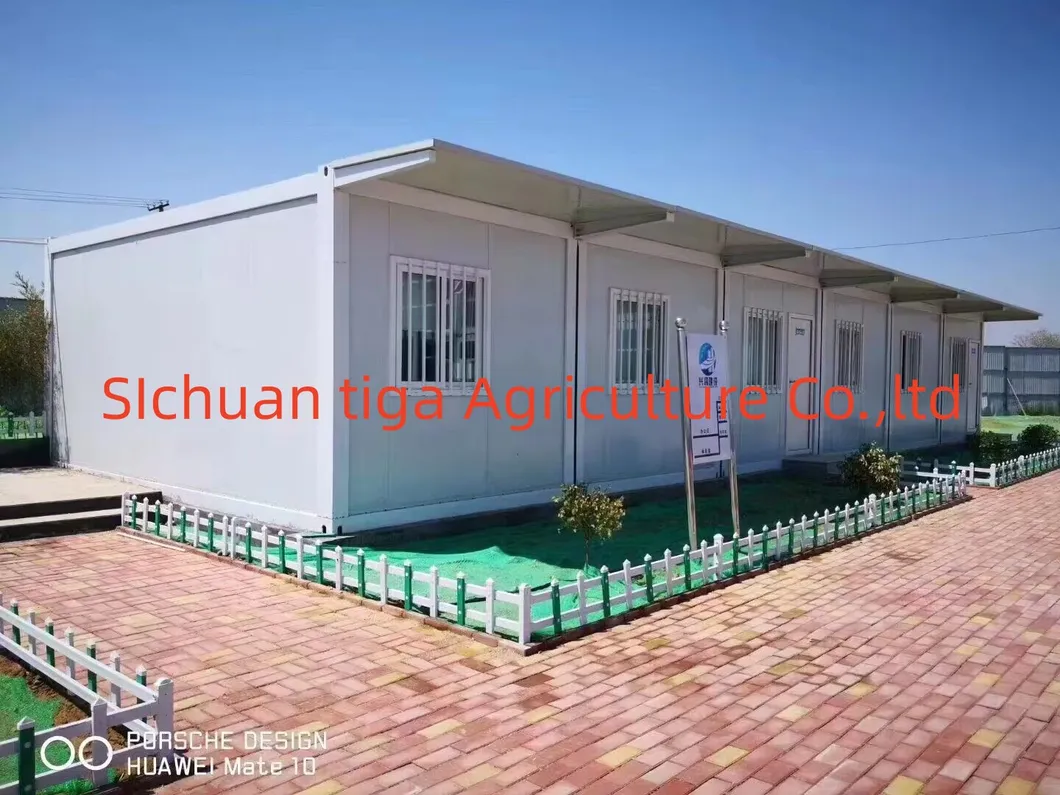

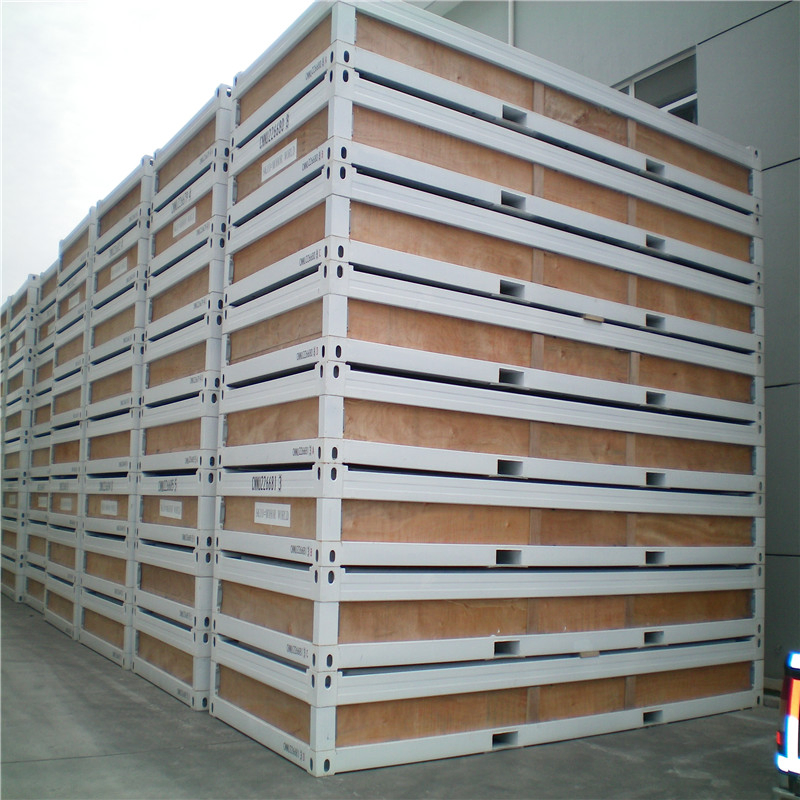

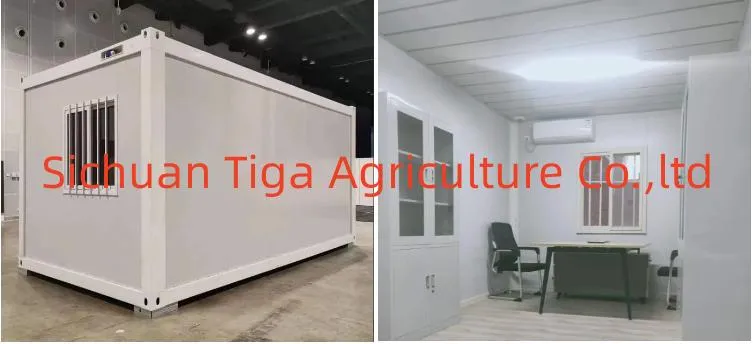

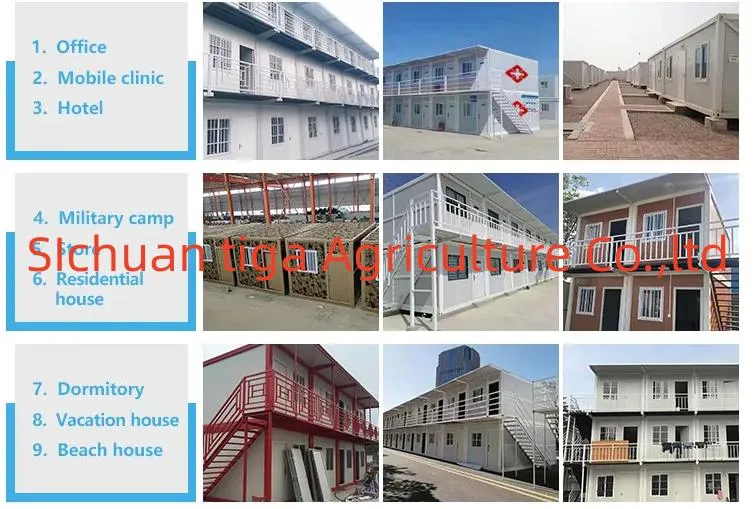

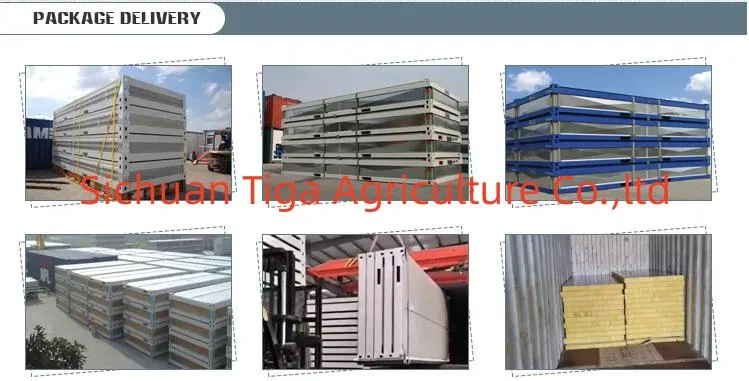

It is heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.

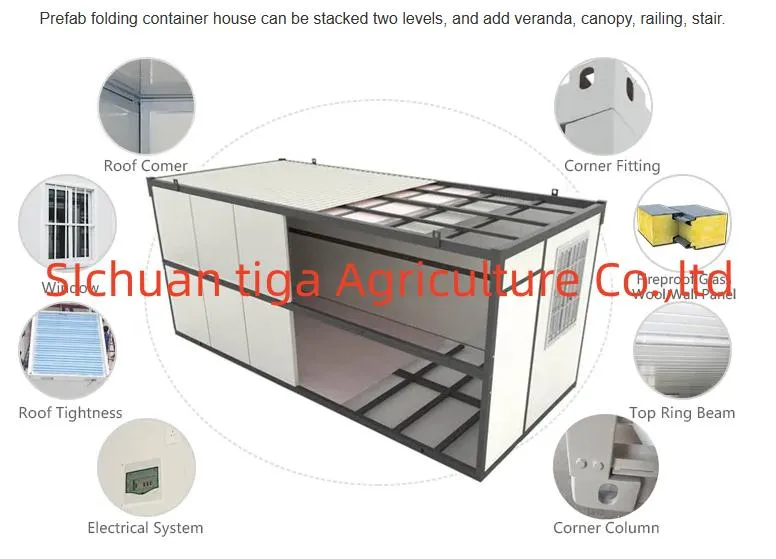

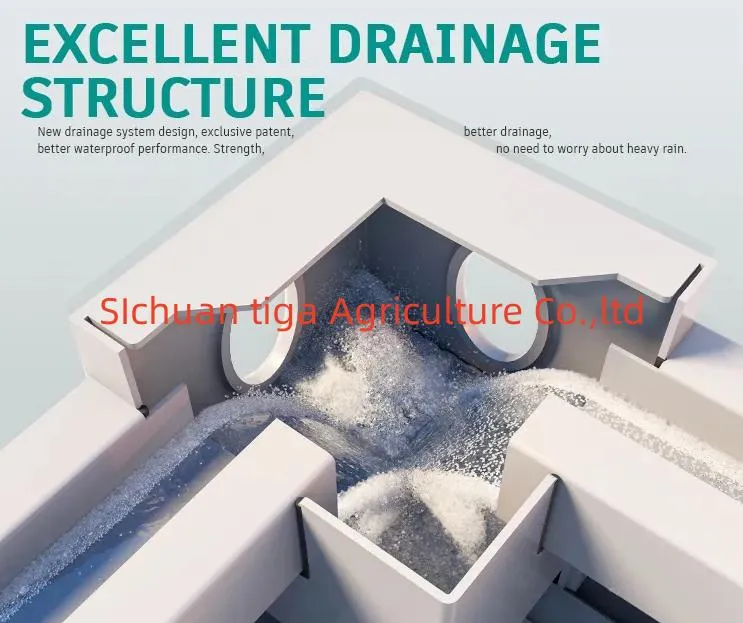

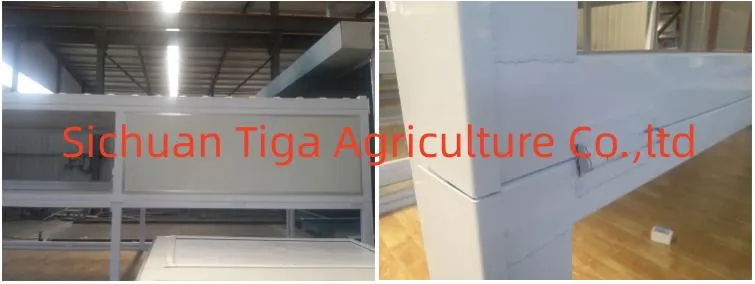

Flat Pack Container is 6.055m*2.435m*2.896m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6 workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires run over ceiling, including DB, breaker, power inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!
| Category | System / Parameter | Detailed Specifications |
|---|---|---|
| Accessory | Roof System | Q345B steel structure + two-sides 0.45mm steel sheets + 70mm PU foaming integrated formed roof + Electrical tube and wiring + outdoor connection socket + distribution box |
| Chassis System | Steel structure chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation optional) | |
| Permitted Loading | >2.5KN/m² | |

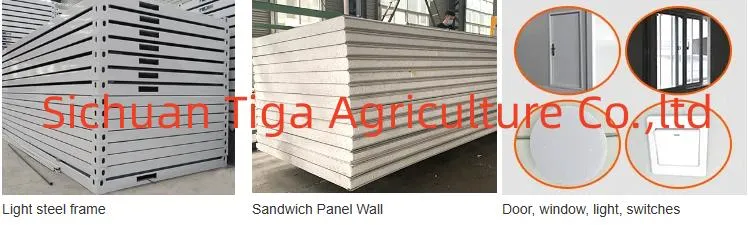

| Wall System | 50/75/100mm EPS sandwich panel, rock wool sandwich panel, glass fiber sandwich panel, or PU sandwich panel | |
| Door System | Steel door / Fire-proof door / Sandwich panel door | |
| Window System | Aluminum alloy shutter window and plastic-steel window, single or double glass | |
| Floor System | PVC, plywood or customized | |
| Options | Drainage System | Provided plan, design and construction |
| Electric System | Provided plan, design and construction | |
| Technical Parameters | Resistant Temperature | -40ºC to 40ºC |
| Wind Resistance | 210km/h | |
| Earthquake Resistance | Grade 8 |
Q1: What are the standard dimensions of this container house?
A1: The standard dimensions are 6055mm x 2990mm x 2896mm (approx. 20ft). Customized sizes are also available according to customer requirements.
Q2: How long is the expected service life of the structure?
A2: The overall service life of the container house is approximately 10 to 15 years. The main steel frame is painted with Graphene Powder (110-160um) which comes with a 20-year guarantee.

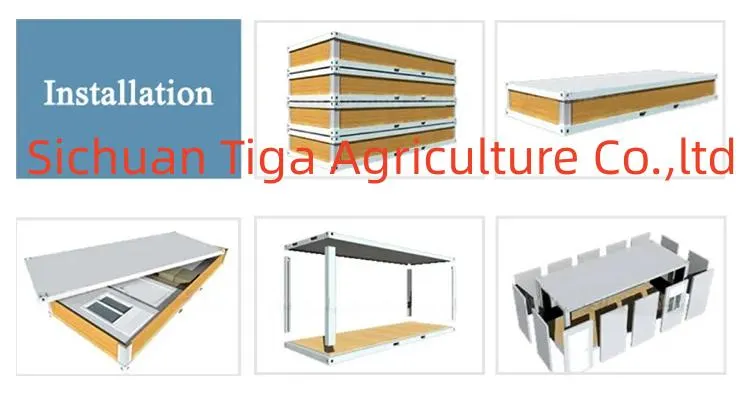

Q3: How many workers and how much time is needed for installation?

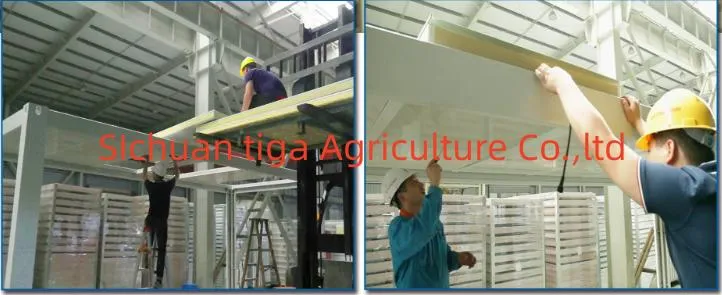

A3: The design allows for rapid assembly. A team of 6 workers can successfully install 1 standard unit within approximately 2 hours.
Q4: What is the wind and earthquake resistance performance of the container house?
A4: The structure is built to withstand wind speeds of up to 210 km/h and can resist seismic activities up to Grade 8 (8 degrees of seismic intensity).

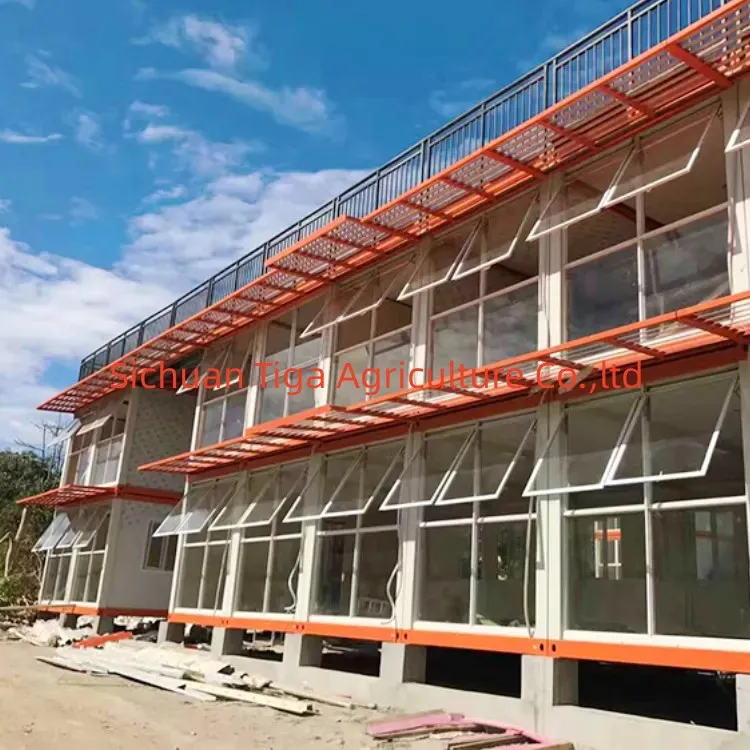

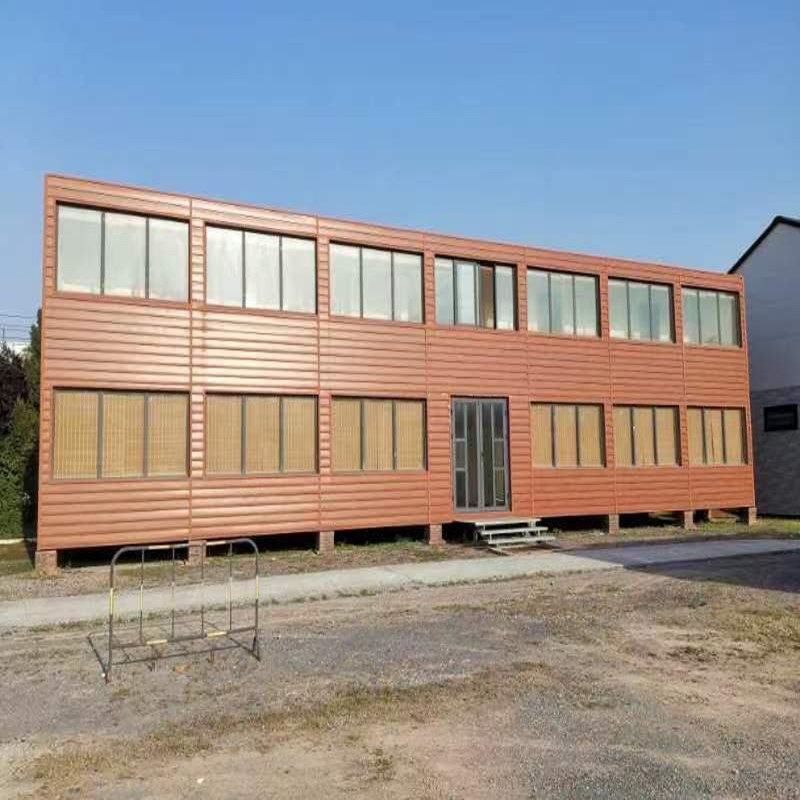

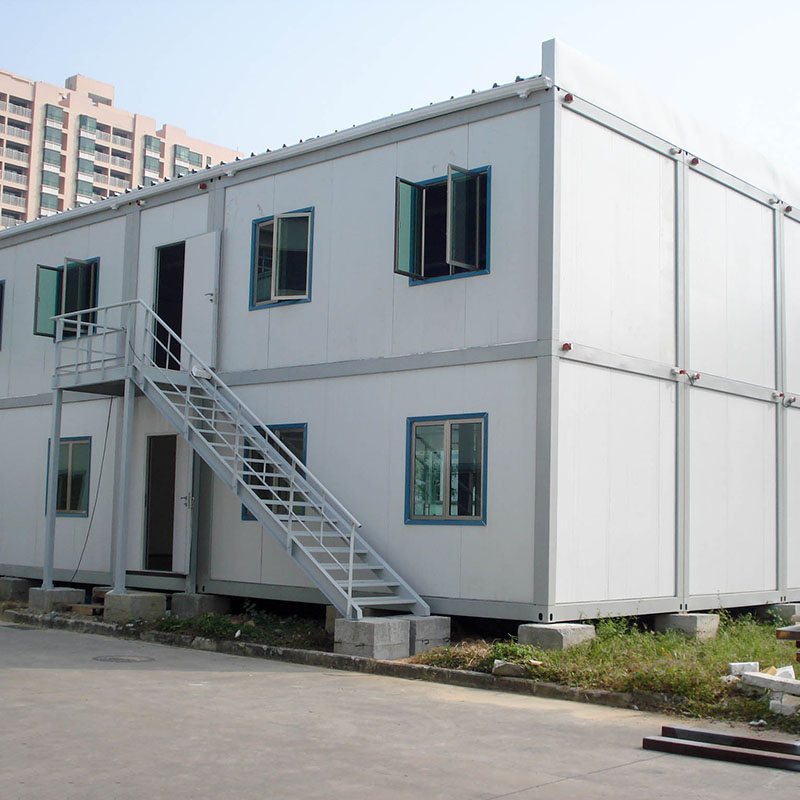

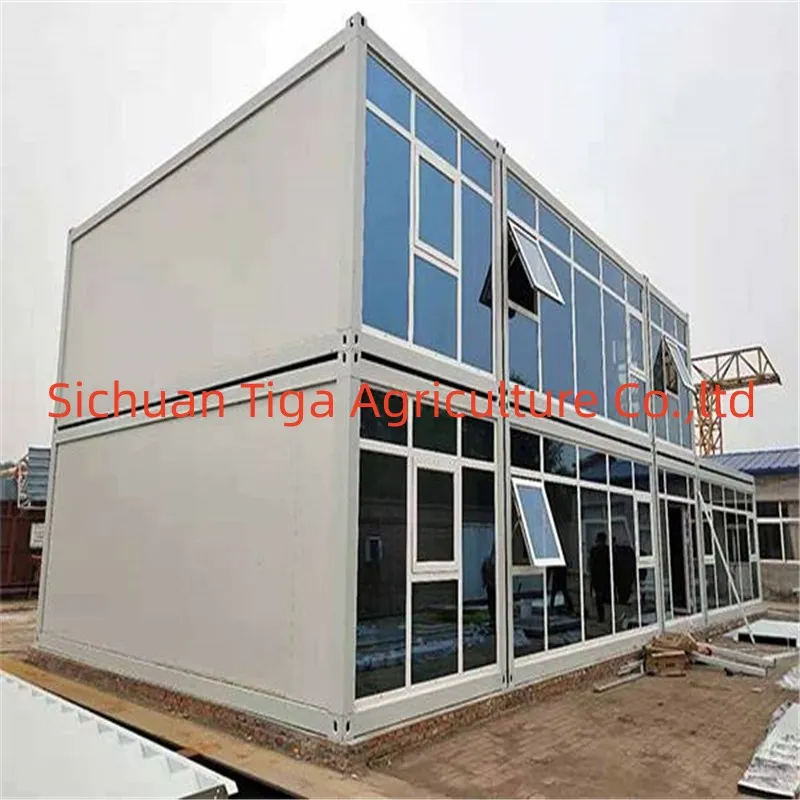

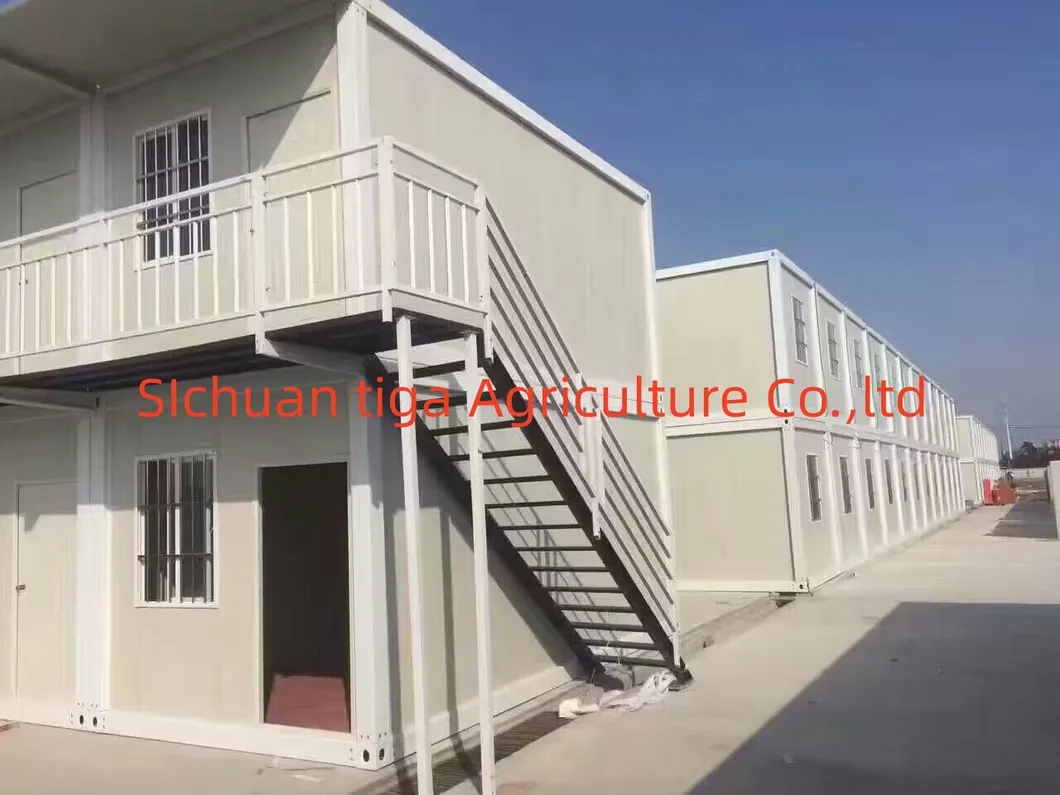

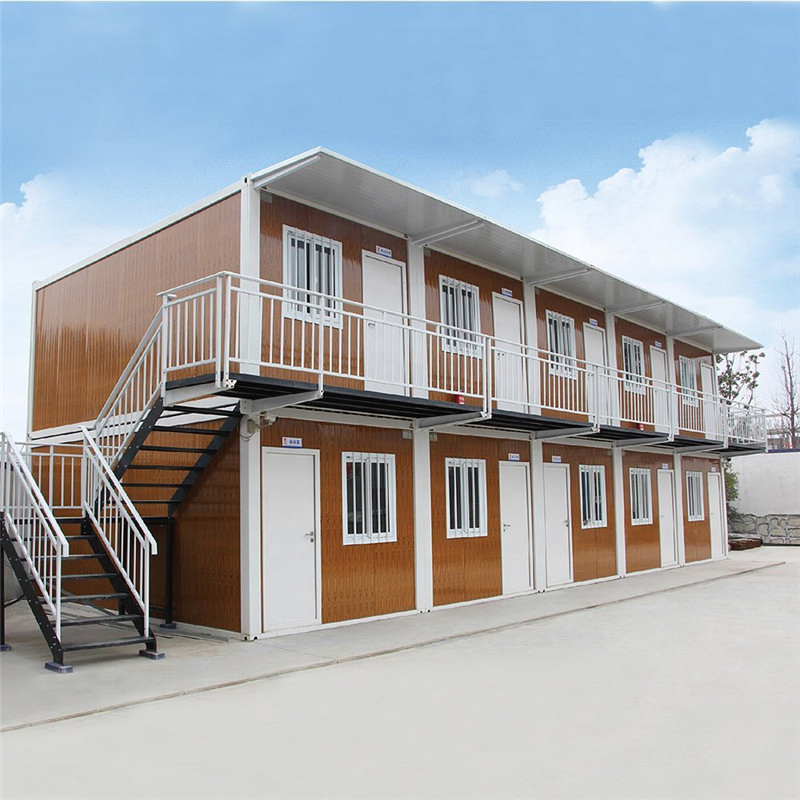

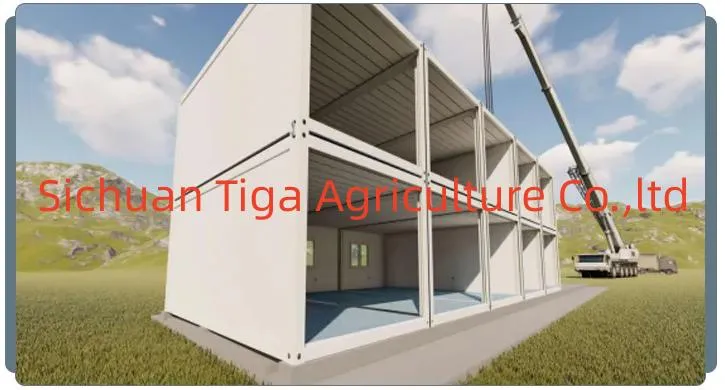

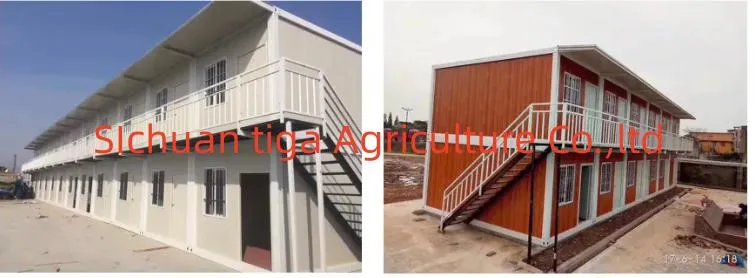

Q5: Can these flat pack containers be stacked?

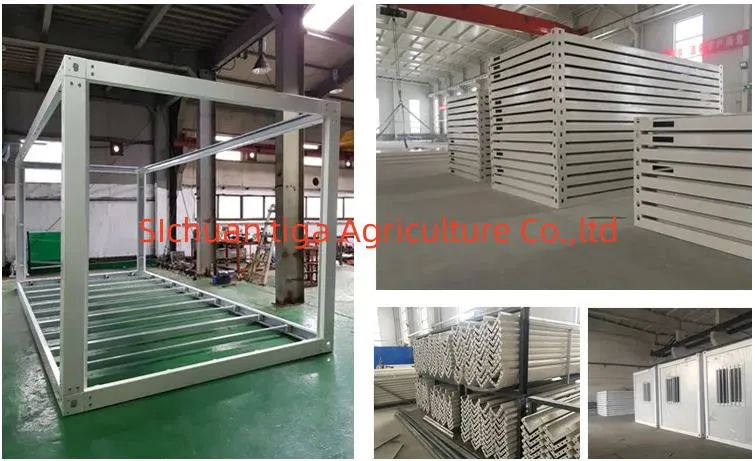

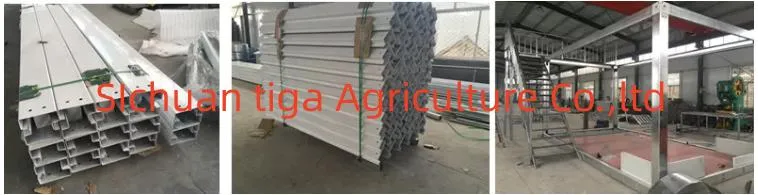

A5: Yes, the container houses are engineered with a fully welded top frame, truss, and reinforced bottom frame, allowing them to be stacked securely up to 3 floors high.
Q6: What insulation materials are used in this container house?
A6: Standard walls and roofs utilize 75mm Glass Wool Sandwich Panels. Additionally, 50/75/100mm EPS, rock wool, glass fiber, or PU sandwich panels are available as optional configurations.
