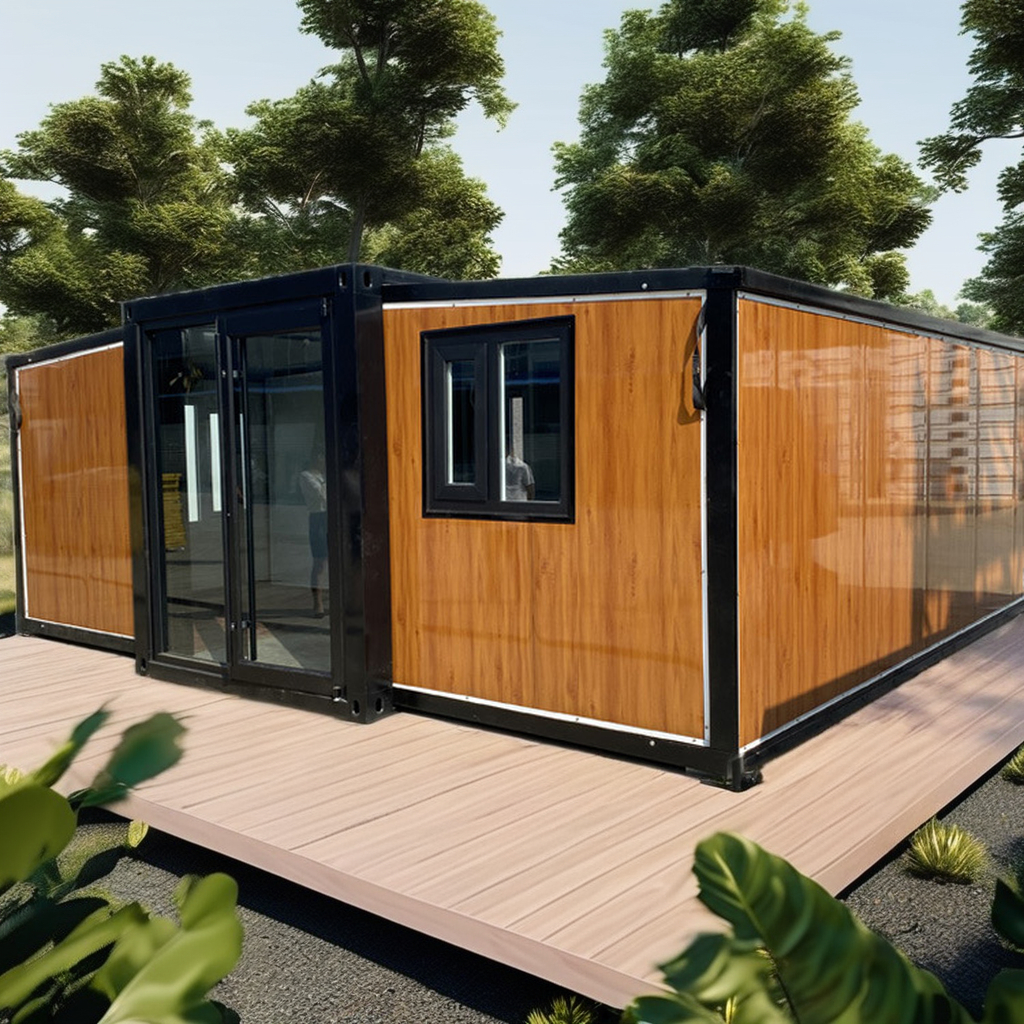

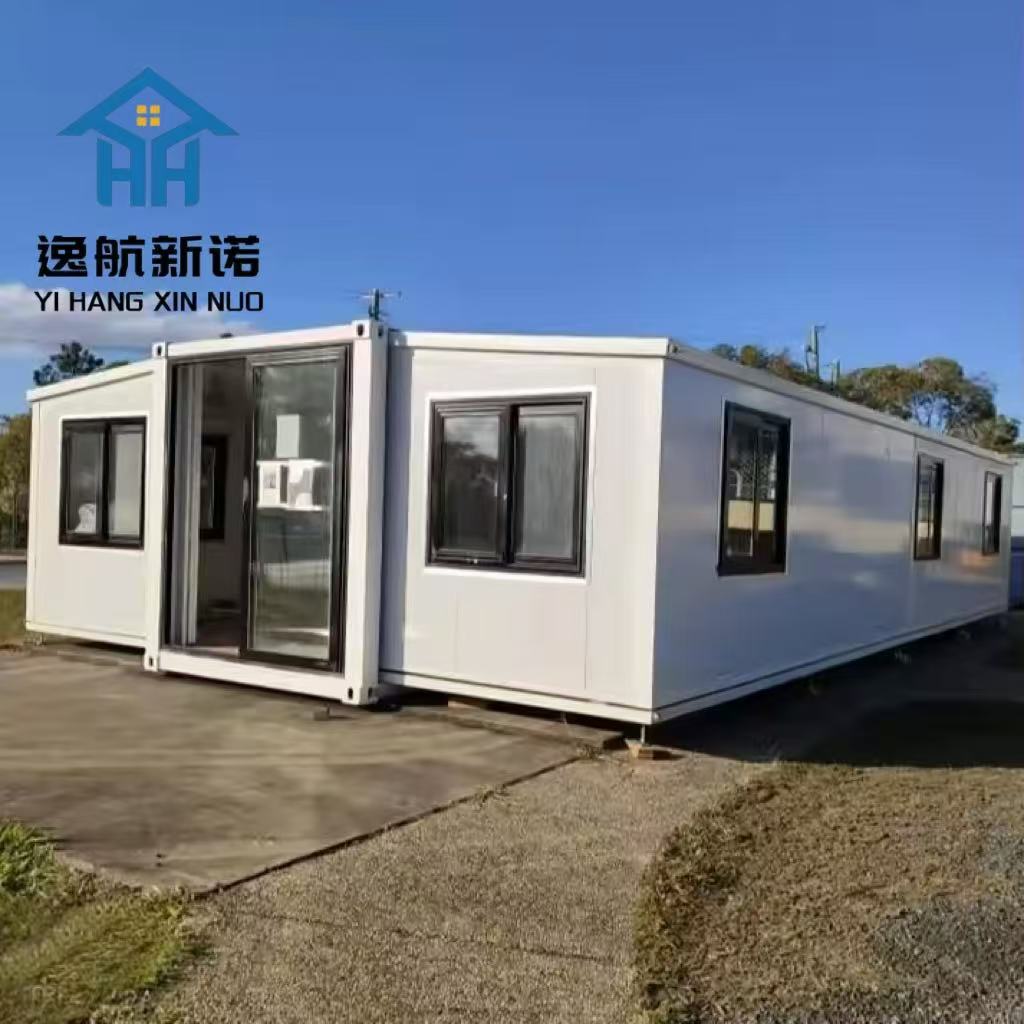

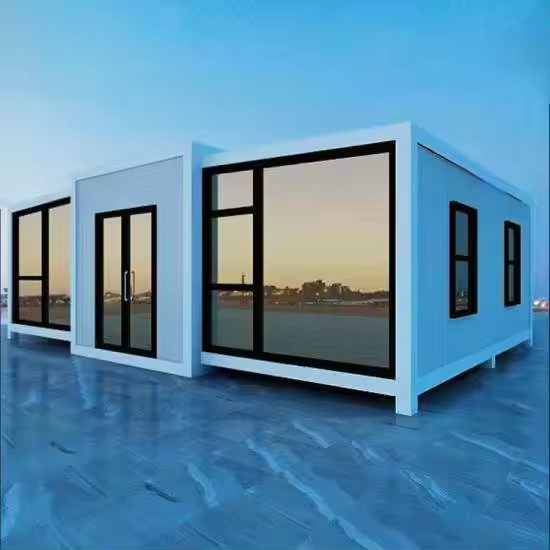

| 20 Feet Double Wing Folding Room Technical Specifications | ||
|---|---|---|
| Basic Feature | External dimensions (mm) | 6300 * 5900 * 2480 |
| Internal dimensions (mm) | 6140 * 5740 * 2240 | |
| Folding state (mm) | 2200 * 5900 * 2480 | |
| Total mass (kg) | 2386 | |
| Frame Structure | Middle top beam | 80 * 100 * T3.0mm Q235B |
| Middle bottom sill | 80 * 100 * T3.0mm Q235B | |
| End side beam | T2.0mm Q235B Z Bending parts | |
| B-pillar | 150 * 210 * T2.0mm Q235B | |
| Side wall frame | 40 * 80 * T1.5mm Q235B | |
| Side wall purlins | 40 * 60 * T1.5mm Q235B | |
| Bottom top purlin | 40 * 80 * T1.5mm Q235B | |
| Side top frame | 40 * 80 * T1.5mm Q235B | |
| Folding hinge | 13mm Galvanized hinge | |
| Overall frame coating | Electrostatic spray / Plain plastic powder | |
| Hanging head plate | T4mm Q235B | |
| Roof | External top plate | T50mm flame retardant purification foam board |
| Internal suspended ceiling | T193 Inner ceiling | |
| Wallboard | Top insulation | t50mm flame retardant purification foam board |
| Side wall, front and rear wall panels | t65mm flame retardant purification foam board | |
| Internal partition | T50mm flame retardant purification foam board | |
| Internal toilet | 1800 length x 1400 width adjustment | |
| Floor | Intermediate floor | Fireproof cement floor 18mm |
| Side floor | 18mm bamboo flooring | |
| Electrical System | Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products must comply with CE certification. According to the circuit engineering specifications to connect the circuit: 2 indoor LED lights, 2 ceiling lights, 3 five-hole single sockets, 1 single open switch, 3 ten-hole sockets, 1 air conditioning socket, 1 20A leakage protection. Voltage is 220V, 50HZ (Socket standard can be adjusted based on the destination country). | |
| Security Door | 1 Common security door 1970 * 1970 (optional: aluminum alloy door, broken bridge aluminum door) | |
| Window | 4 Plastic steel single glass sliding windows (930 * 930) (optional: aluminum alloy window, broken bridge aluminum window) | |
| Quality Assurance | One Year Warranty (China) | |
