Products Description

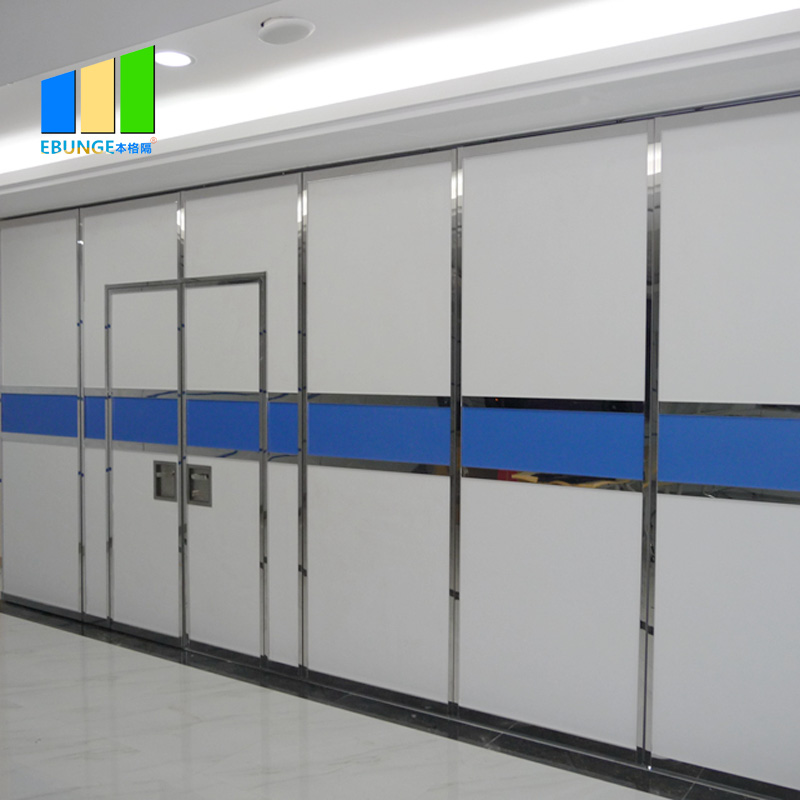

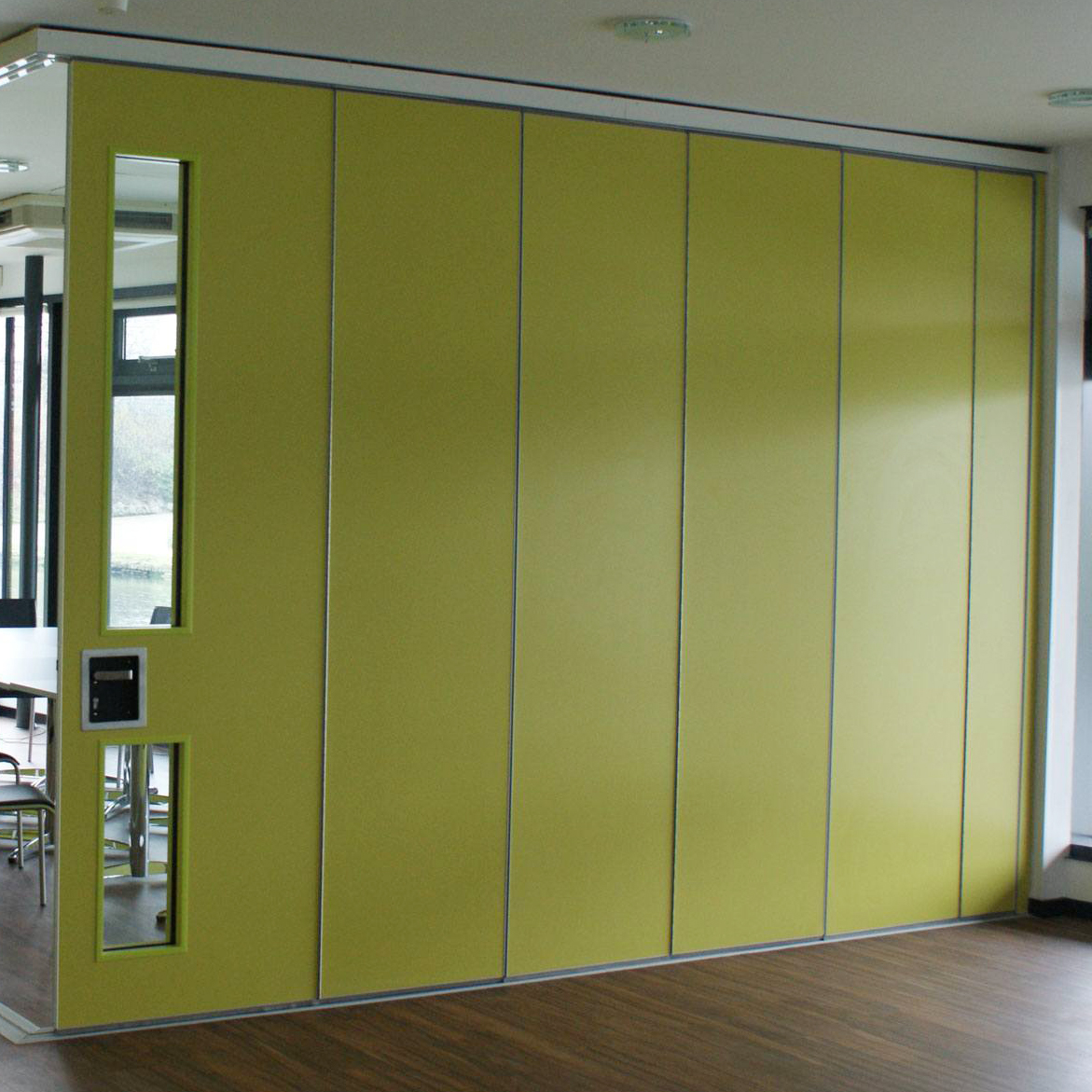

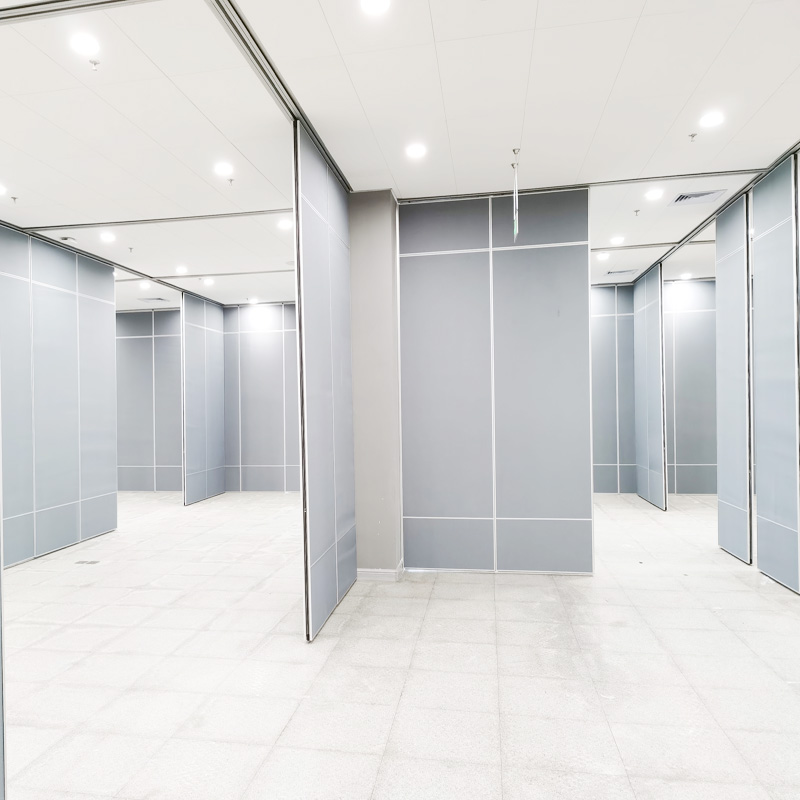

Folding partition wall can separate the space speedy and conveniently. There is top hung system without the need for a floor track. Conference room soundproof wall partition is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc. Around the panel, there is sound insulation rubber, it can help to insulate the sound entering. Soundproof movable partition wall is hanging on the aluminum track, assembled with muti direction wheels.

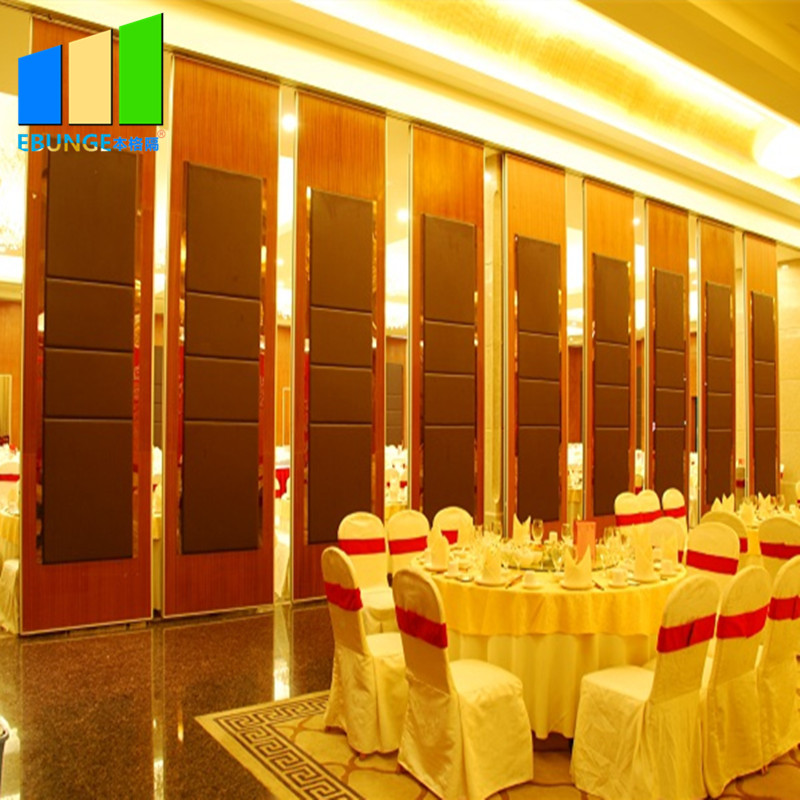

Movable partition characteristics
- Aluminium movable partition wall have interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
- To ensure aluminium movable partition wall additional friction connection, shall be integrated with magnetic strip.
- Aluminium movable partition wall are easy element adjustment after installation.
- Aluminium movable partition wall rack system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
- Aluminium movable partition wall surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
Technical Specifications
| Series |
BG65 |
BG85 |
BG100 |
| Panel suspension |
Top hung only |
Top hung only |
Top hung only |
| Track system |
Single or twin point |
Single or twin point |
Single or twin point |
| Panel thickness |
65mm |
80mm / 85mm |
100mm |
| Panel height |
Up to 4000mm |
Up to 6000mm |
Up to 18000mm |
| Max height |
4000mm |
6000mm |
18000mm |
| Panel width |
600-1230mm |
600-1230mm |
600-1230mm |
| Frame construction |
Aluminum frame |
Aluminum frame |
Aluminum frame |
| Face material |
9mm |
9mm / 12mm |
12mm |
| Fire safety |
Optional Class I or O |
Optional Class I or O |
Optional Class I or O |
| Vertical profiles |
Aluminum anodised with sealing profiles |
Aluminum anodised with sealing profiles |
Aluminum anodised with sealing profiles |
| Retractable seals |
Aluminum black with double rubber seals |
Aluminum black with double rubber seals |
Aluminum black with double rubber seals |
| Operation of seals |
Manual, with supplied operating handle |
Manual, with supplied operating handle |
Manual, with supplied operating handle |
| Locking |
Optional lock to pass doors |
Optional lock to pass doors |
Optional lock to pass doors |
| Pass doors |
Single open in panel or double open in two panel |
Single open in panel or double open in two panel |
Single open in panel or double open in two panel |
| Sound insulation |
20-32dB Rw |
28-36dB Rw |
32-50dB Rw |
| Weight |
Approx 22-35kg/sq M |
Approx 25-40kg/sq M |
Approx 30-48kg/sq M |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |

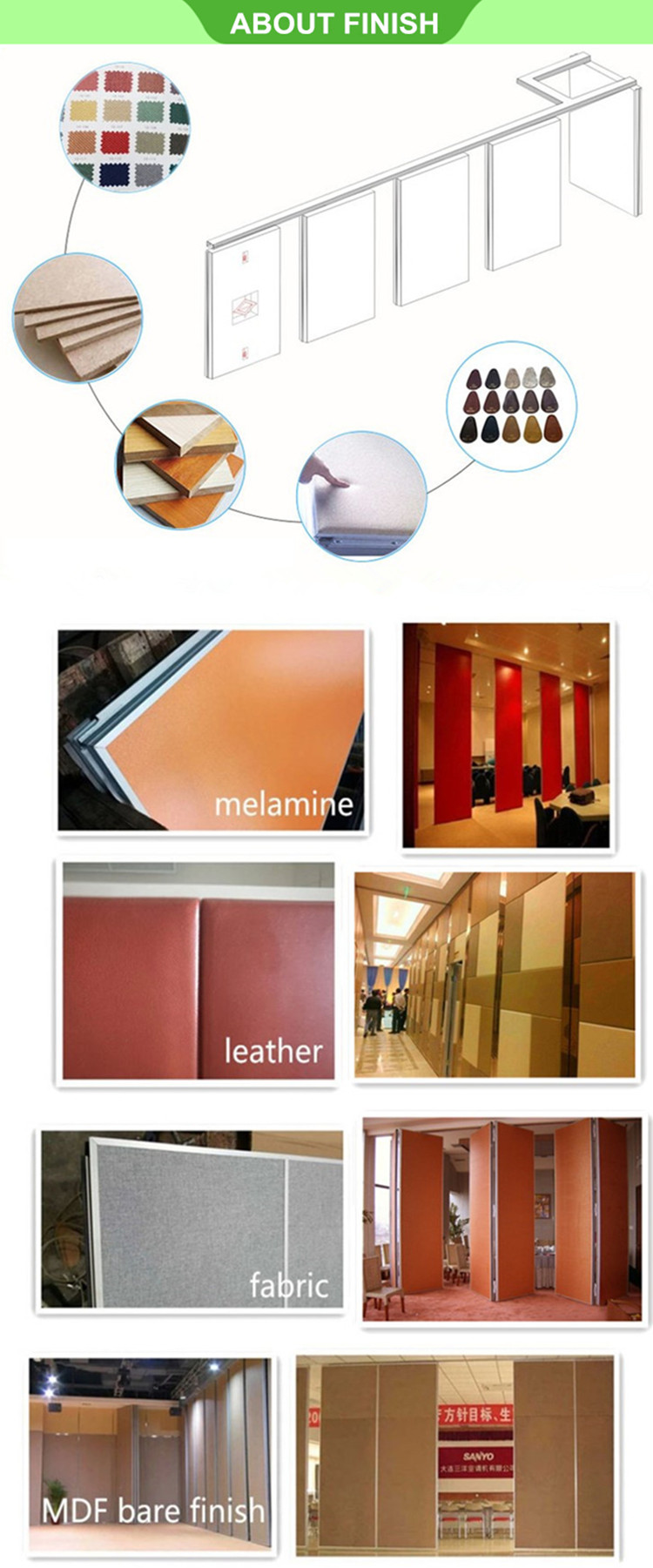

Finish & Accessories
Different surface use in different areas. Our main surface is MDF with Melamine, it can be used in Classroom, Restaurant and so on, it's easy to maintain. Fabric and PU leather surface are very popular in conference room and hotel banquet hall. In dancing room, clients usually prefer mirror surface. Also we can design surface based on fabric or pu leather with modern printing photos. If clients prefer to paint color on panels, we suggest MDF bare finish, it's also very welcomed, because it can make wallpaper, painting on site.
Related Products

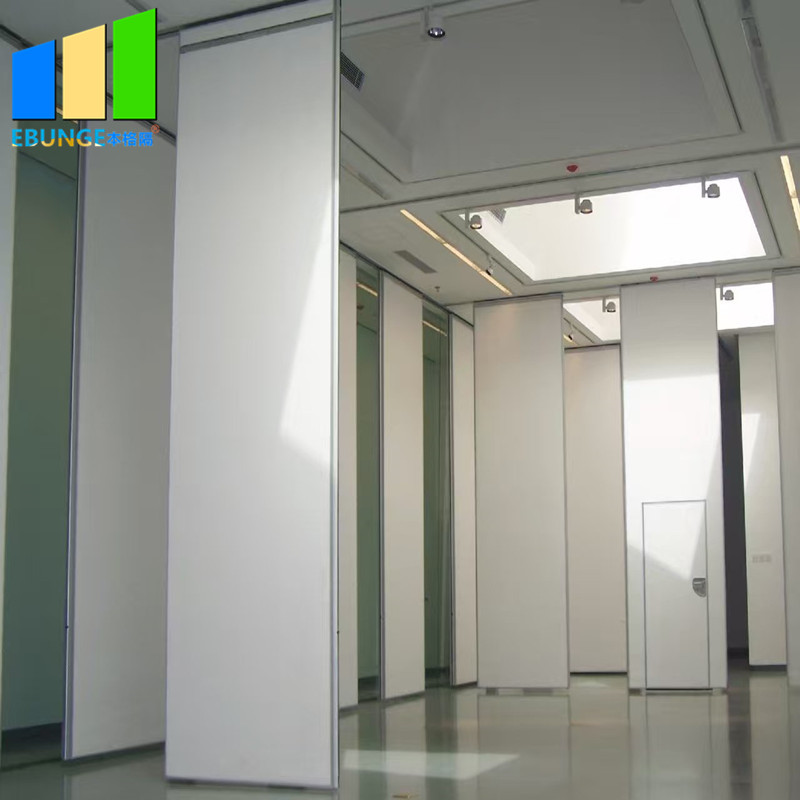

Floor to Ceiling Hanging System Sliding Aluminium Operable Movable Folding Acoustic Partition Wall

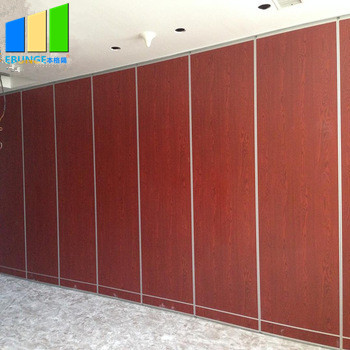

Acoustic Room Divider MDF Melamine Soundproofing Panels Movable Sliding Hotel Movable Wall Partitions

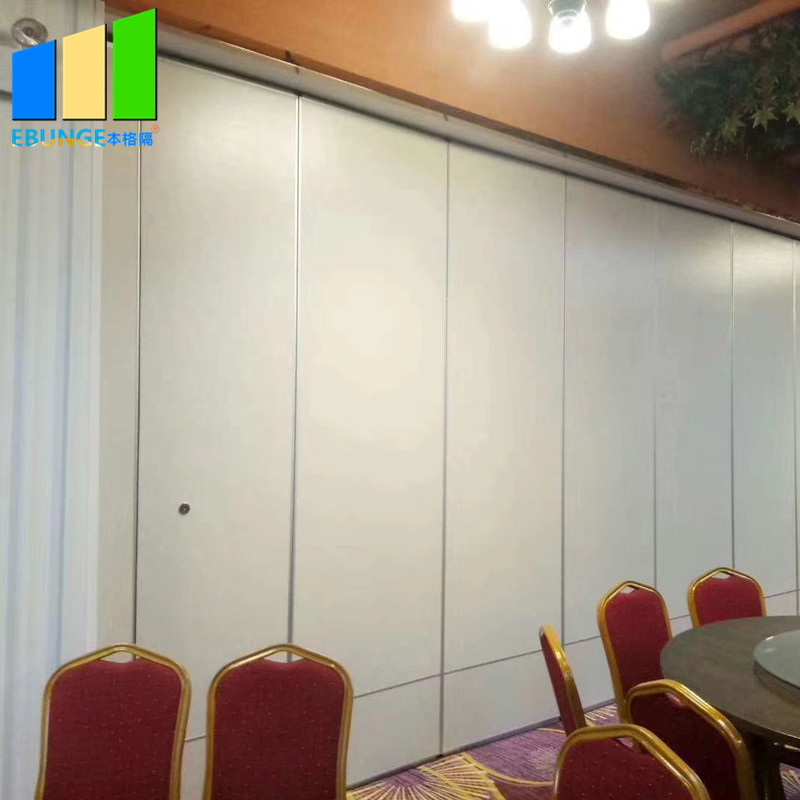

China Manufacturer Soundproof Operable Wall Partition Sliding Walls Acoustic Movable Folding Partition

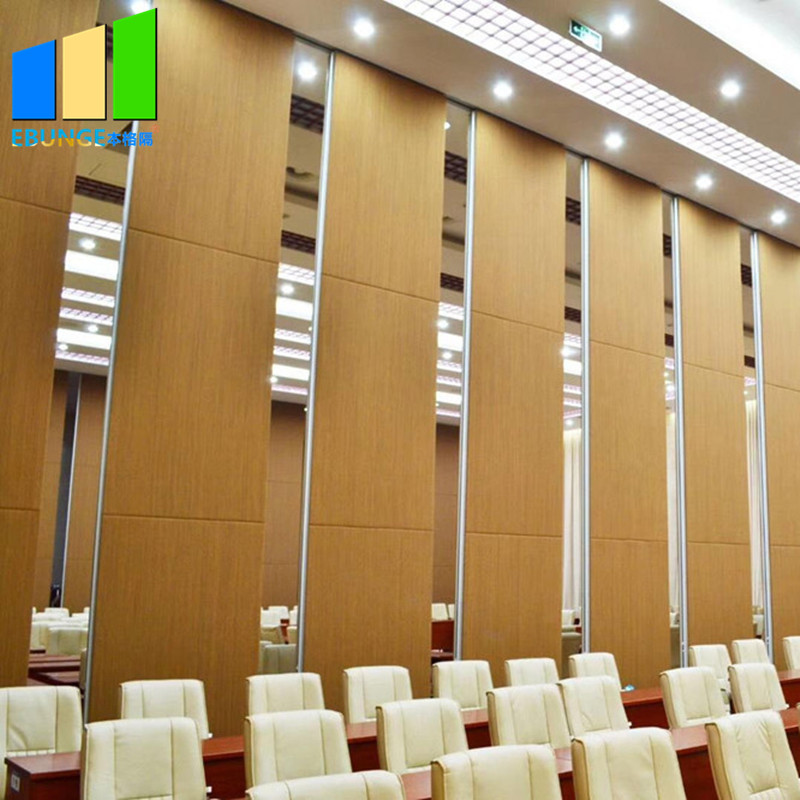

Sliding Folding Wall Partition,Soundproof Movable Partition Wall Office Acoustic Partition Wall

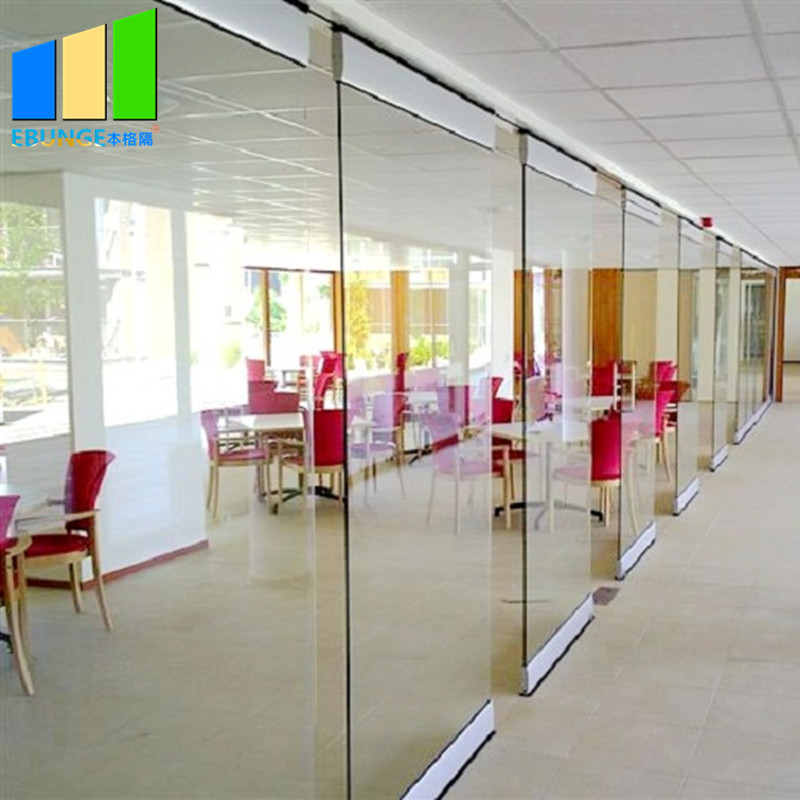

Dining Room Spotless Room Dividers Aluminium Frameless Sliding Glass Office Partition Walls

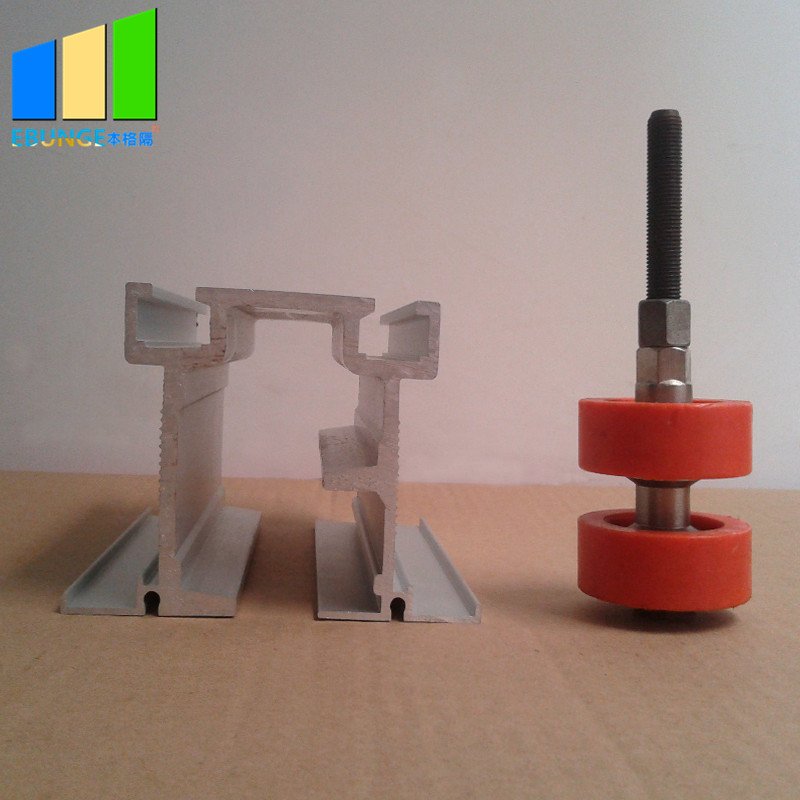

Operable Movable Wall Track Roller Aluminium Accessories Part Sliding Wall Partitions Profiles
Production & Installation
Manufacturer based
We are a professional comprehensive office glass partition Manufacturer, we make sure to offer the best solutions of space flexible.
Installation Details
Movable partition wall is composed of many single panels. Each panel is equipped with single or two hanging rollers. It depends on the horizontal hanging roller to make the partition panel hanging along the track. The vertical contact points of each single panel are connected by concave and convex positions. The seal rubbers are embedded and panel top and bottom parts are equipped with a retractable mechanism.

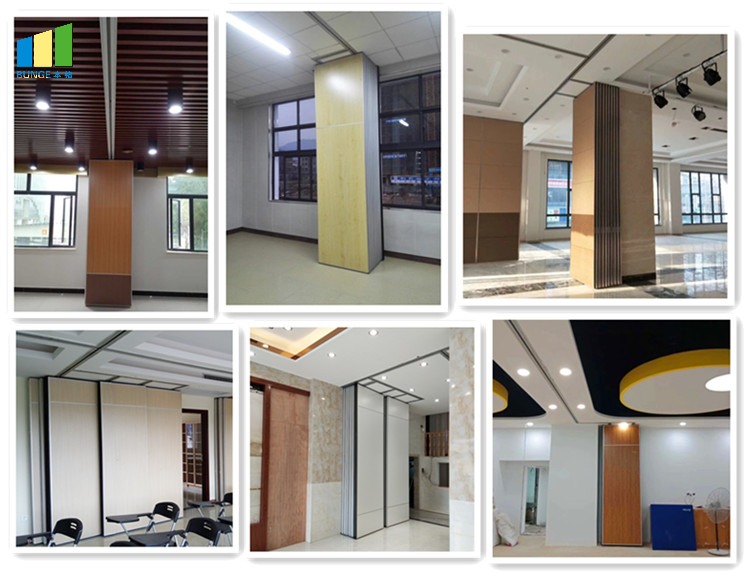

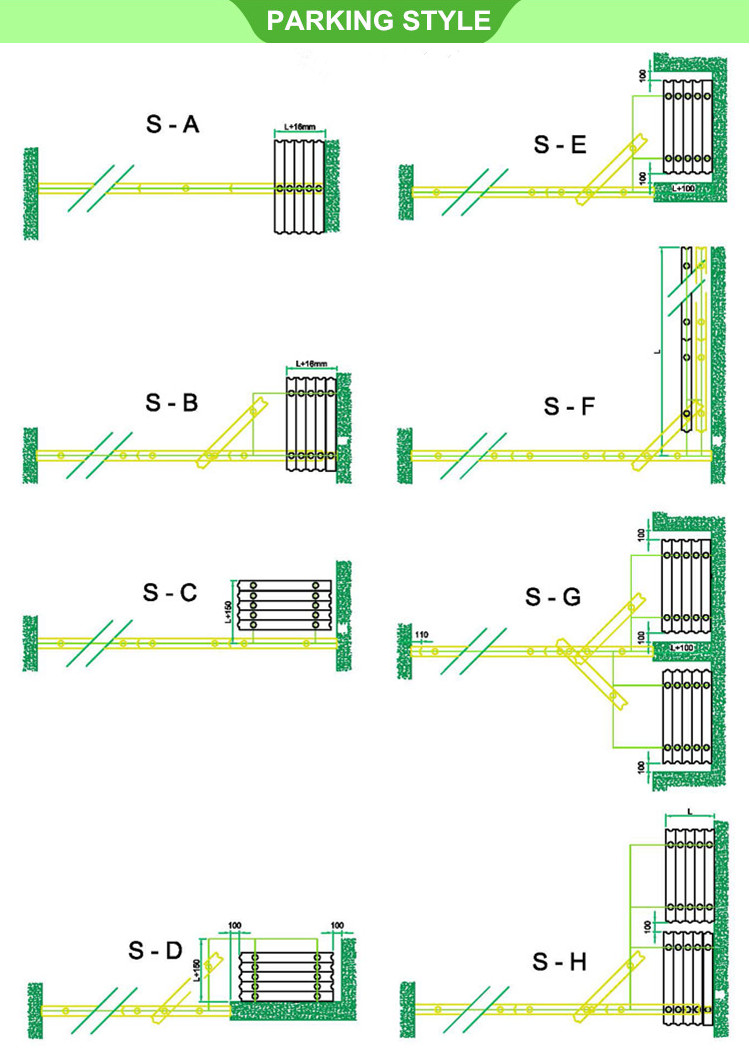

When closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.

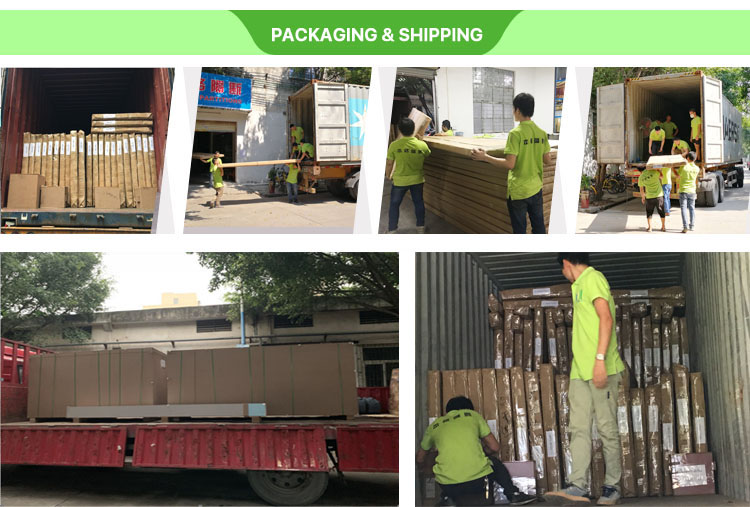

Packaging & Shipping
Our normal packing for movable partition wall is carton package, MDF batten on four section sides, foam board on both front face.
🎁
Free Sample in 10 Days
Inquiry now and you will have your sample in 10 days if you pay the express.
🛡️
3-year Warranty
The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years.
⚙️
OEM Service
Your logo can be printed on the packaging carton.
About Us
We are a professional company in manufacturing movable partitions. We also artistically design and carefully do research and development (R&D). Our production processes adopt advanced partition technologies from the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production, and installation.

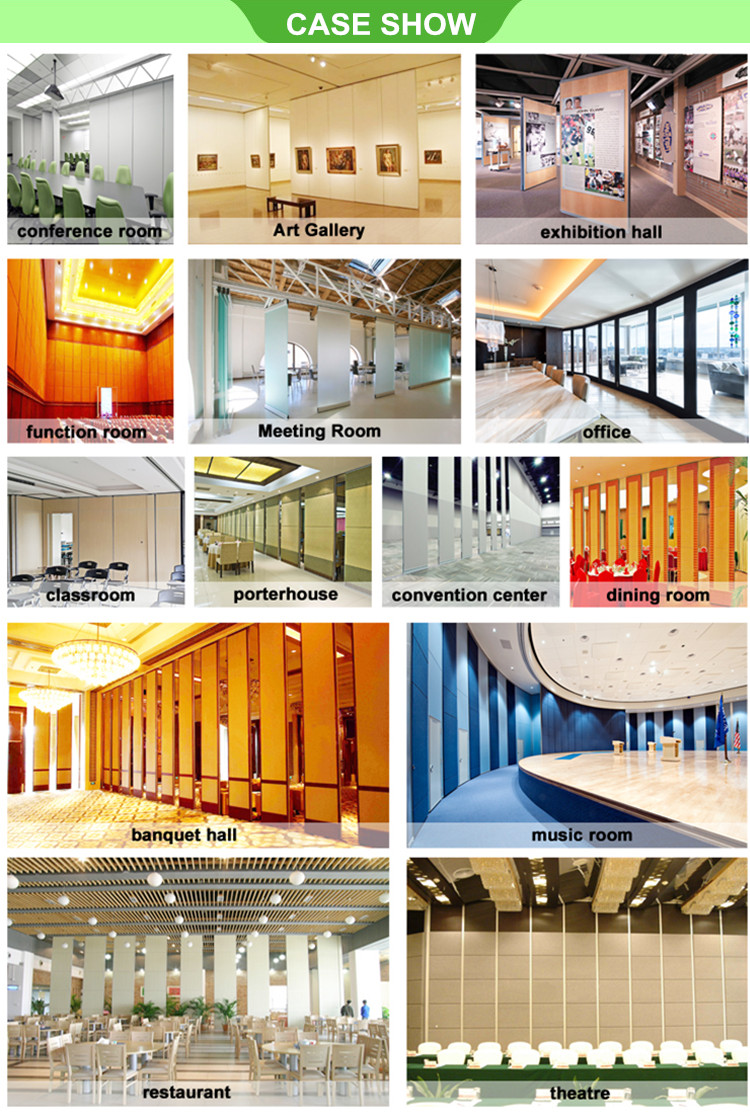

Our movable partition products are widely used in hotels, banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals, and more.
Nowadays, modern architectural trends demand greater flexibility and convenience in optimizing space. Most building designers prefer open-plan layouts with soundproofing qualities that are easy to operate. Our movable partitions provide the perfect solution.
Our partition series include:
1. Ordinary Series: 65MM, 85MM;
2. High Sound Proof Series: 85MM, 100MM;
3. Super High Series: Steel Track System;
4. Glass Series: 65MM & 85MM Aluminum Frame.
Customer Photos
We have clients from all over the world, they are satisfied with our soundproof movable partition walls. When they came to our factory, they all surprised at our environment and our technology. There is a big movable wall showroom in our factory, with different finish samples, like glass partition, melamine partition, leather partition, fabric partition, etc.
Frequently Asked Questions
Q1: How does the hanging system work without a floor track?
A: The movable partition wall is a top-hung system where panels hang along an extruded aluminum ceiling track using multi-directional rollers. This layout eliminates the need for any floor tracks, keeping your flooring clean and unobstructed.
Q2: What face finishes are available for the partition panels?
A: We offer a wide range of custom finishes, including MDF with Melamine (easy to maintain), Fabric and PU Leather (popular for banquet halls and hotels), Mirror surfaces (ideal for dance studios), and MDF bare finish for custom wallpaper or on-site painting.
Q3: How is soundproofing achieved in your partition walls?
A: Our partition walls are built with high-density aluminum frames, specialized acoustic rubber seals on the sides, high-performance sound-insulating cotton inside, and retractable top and bottom mechanisms to create a tight acoustic seal.
Q4: What is the maximum height and width for these partition panels?
A: The dimensions depend on the series selected. For our ordinary series (BG65), heights go up to 4000mm. The BG85 series supports up to 6000mm, while our super high steel track system (BG100) can support panel heights up to 18000mm. Typical panel widths range from 600mm to 1230mm.
Q5: What packaging and shipping protection do you provide?
A: Our standard export packing includes sturdy cartons, protective MDF battens secured on all four edges, and shock-absorbent foam boards covering the front and back faces to prevent damage during transport.
Q6: Do you provide samples and what is the warranty?
A: Yes, we provide free samples within 10 days (clients cover the express shipping cost). We also offer a 3-year warranty on our products, which are made of premium 6063-T5 alumina ensuring high durability and wear resistance.
