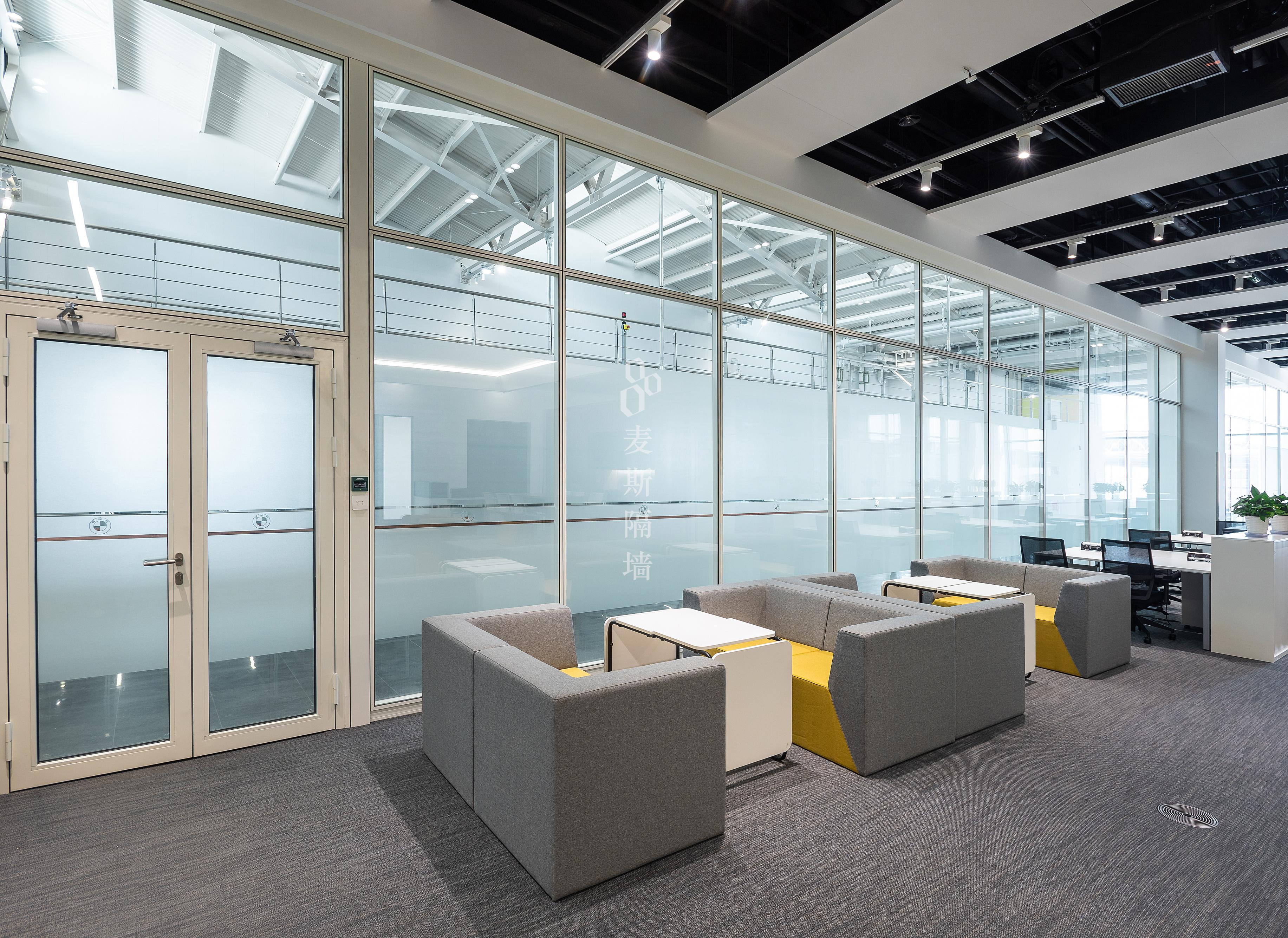

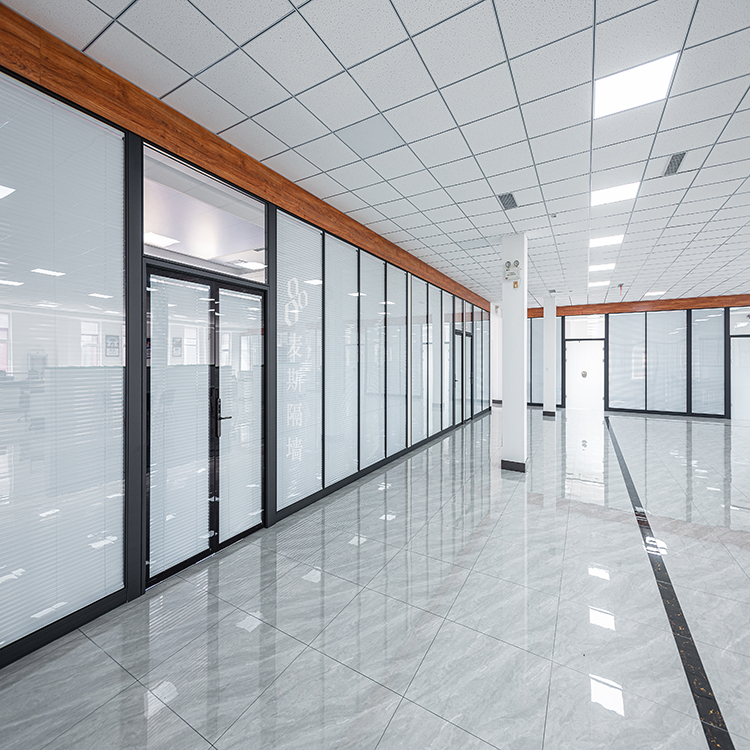

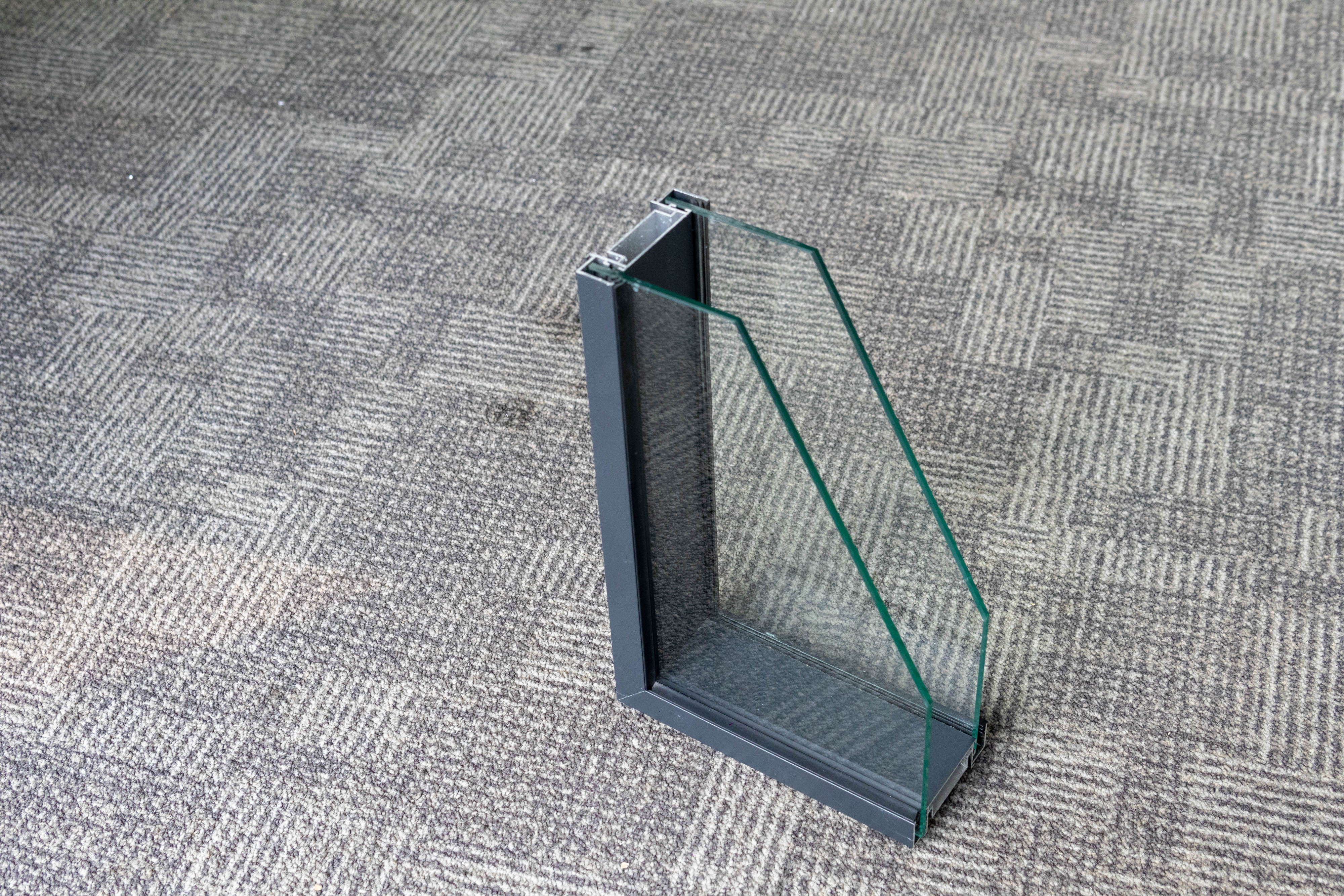

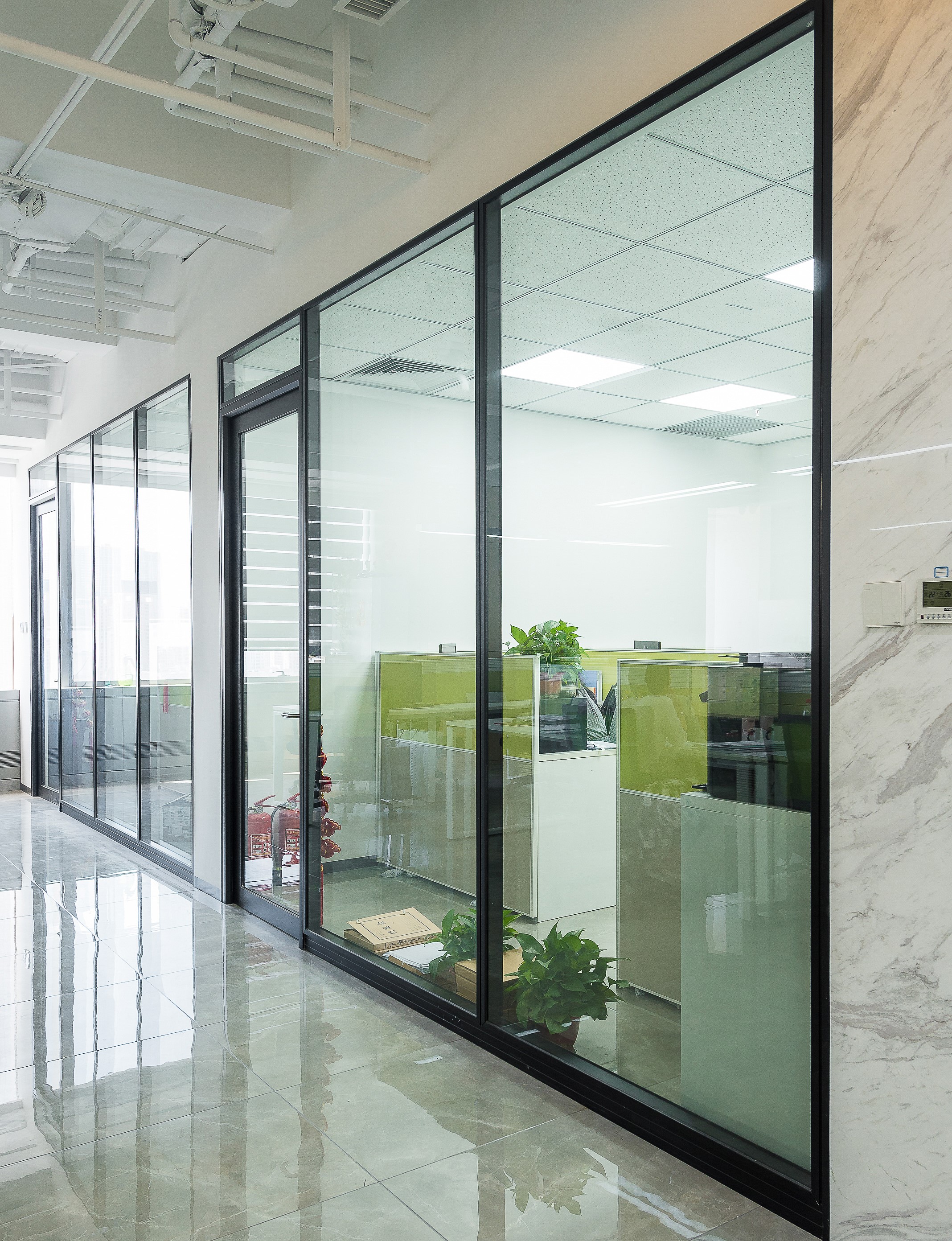

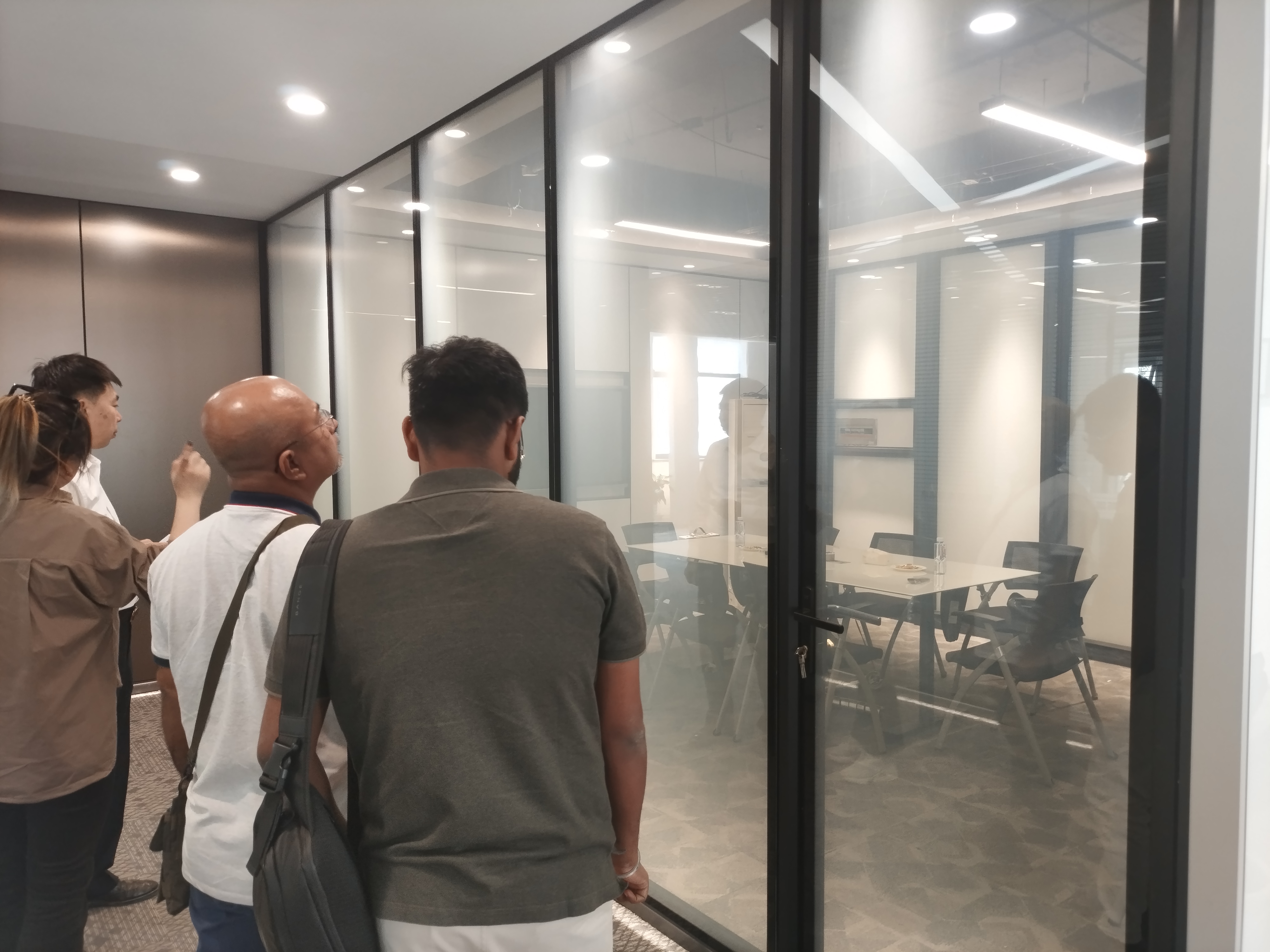

| Product Name | Visible frame double glazing wall | Style | Modern |
| Colour | Custom-made according to RAL color chart. | Materials | Tempered Glass + Aluminum Profile + Accessories |

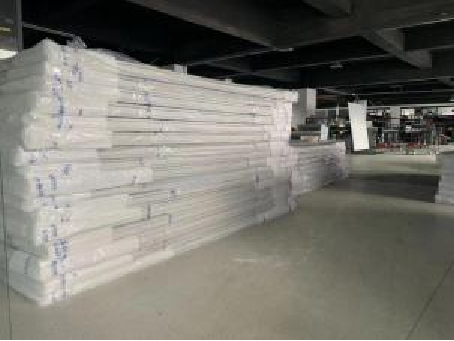

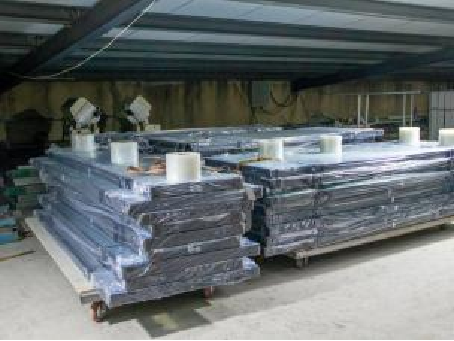

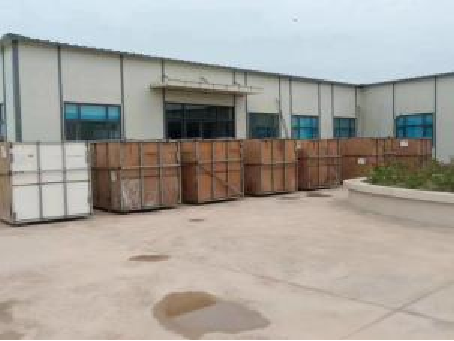

| Feature | Fire resistance | Modes of packing | Foam wrap inside, wooden box outside |
| Size | Option 1: Standard size (e.g. 1.2m*2.6m) Option 2: Customization |
After-sale service | Five-year Warranty for Glass Partitions (Free part replacement; shipping covered by customer) |

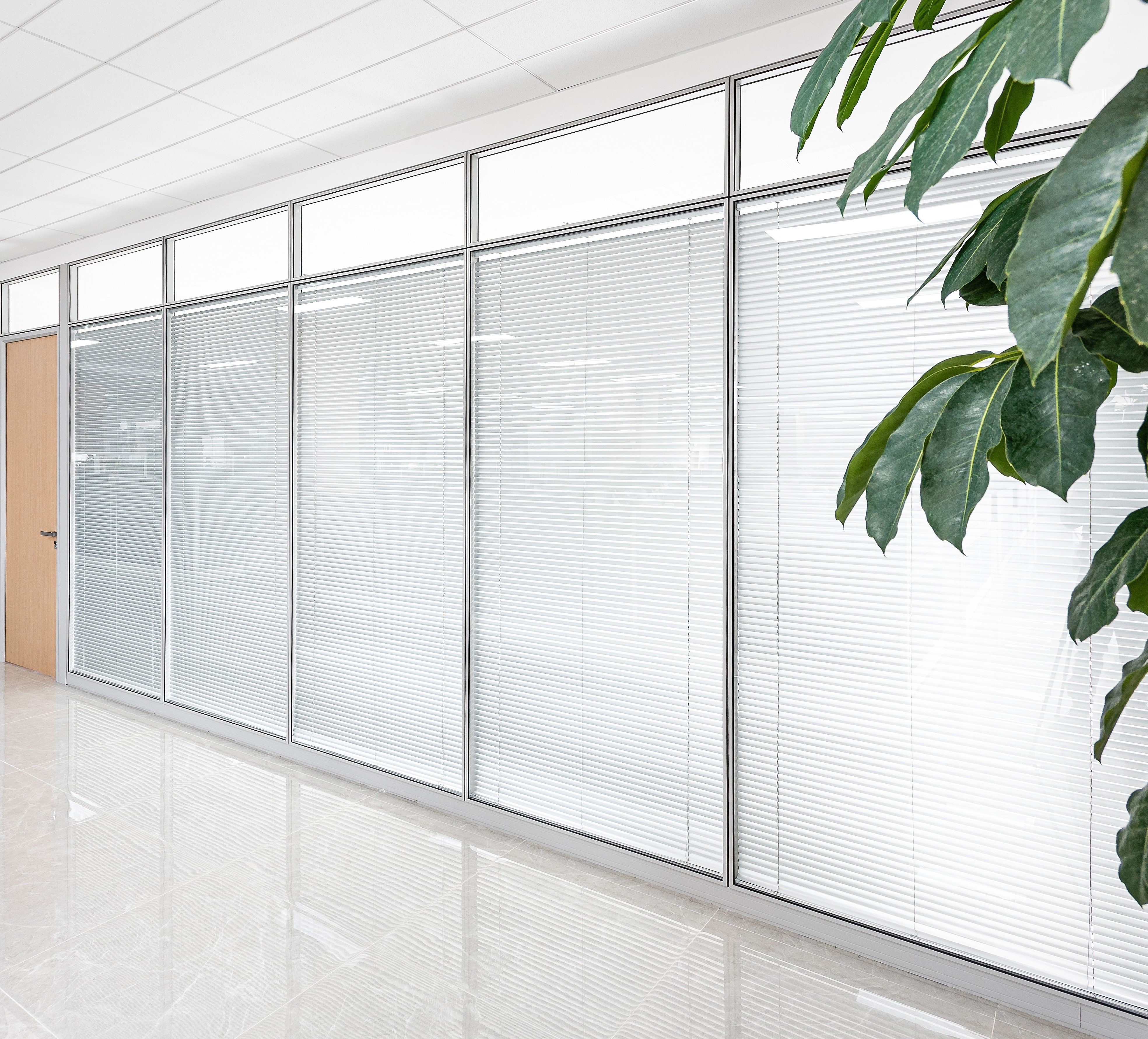

| Installation | Modular & Demountable | Glazing | Single or Double Glazing, Manual or Electric louvers (Prefabricated & ready to install) |
| Glass-frame connection method | Plug-in method | Color of Frame | 7047 Telegrey / Steel Gray standard, customizable |

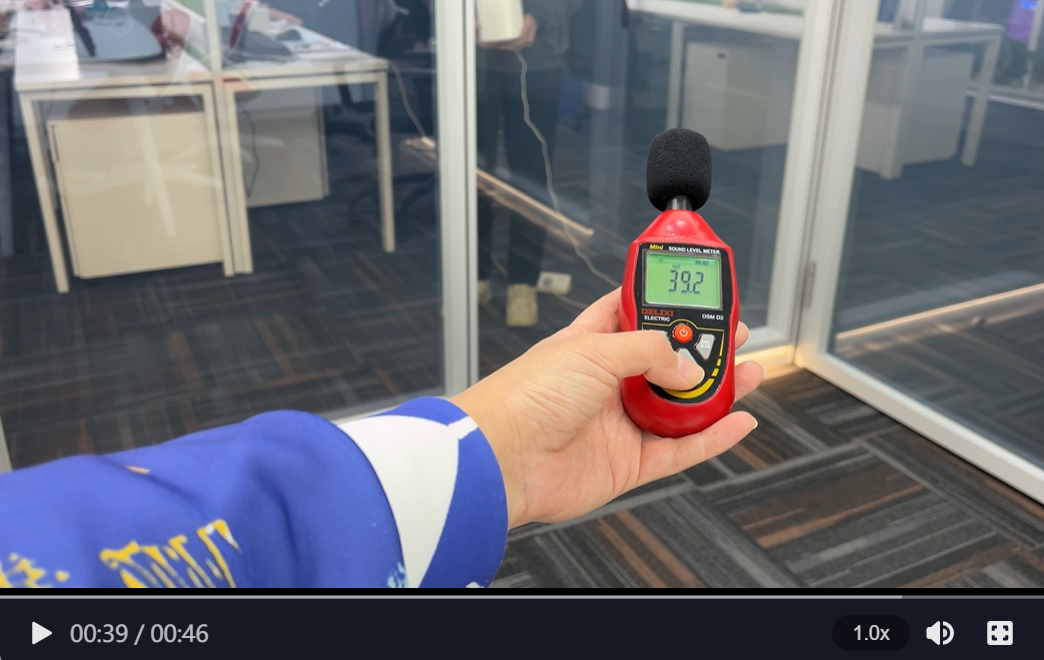

| Sound Insulation | 40dB | Fire Resistance | Class C (60 mins) |

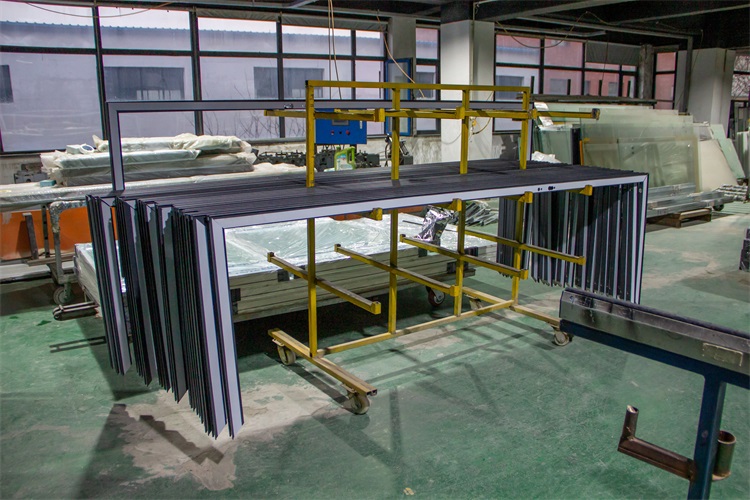

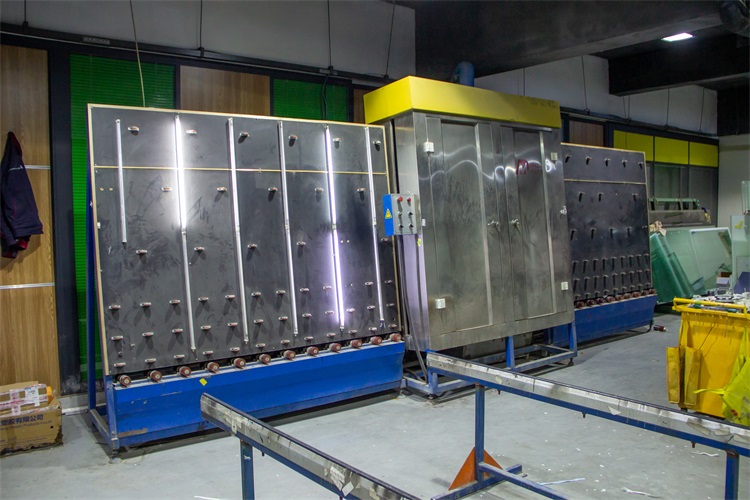

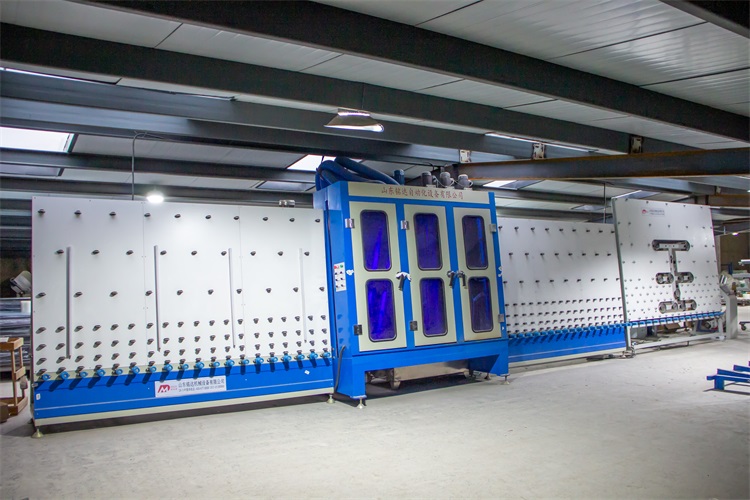

| Modular profile manufacturing process | Produced by double-head cutting machines: 45° aluminum corner joint, gap between glass and profile is less than 0.1 mm, high-grade fluorocarbon spraying. | Panel allowances | 3100mm × 1400mm maximum Blinds maximum recommendation: 1250mm width, 3000mm height |
| Production time | 15-21 days after advance payment (excluding holidays) | Verified Certifications | ISO 9001, PEFC, CQC, CCC |

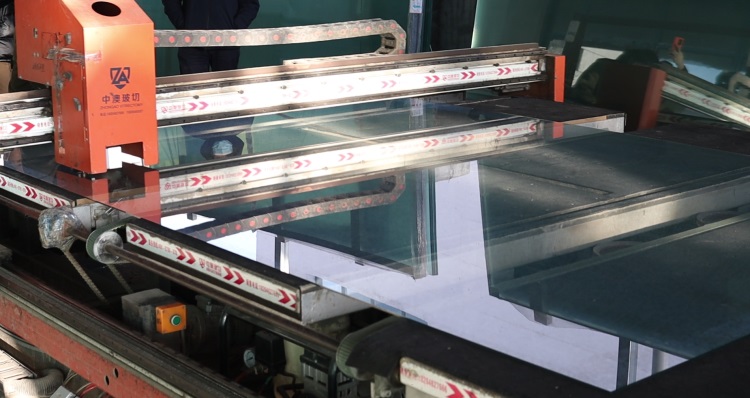

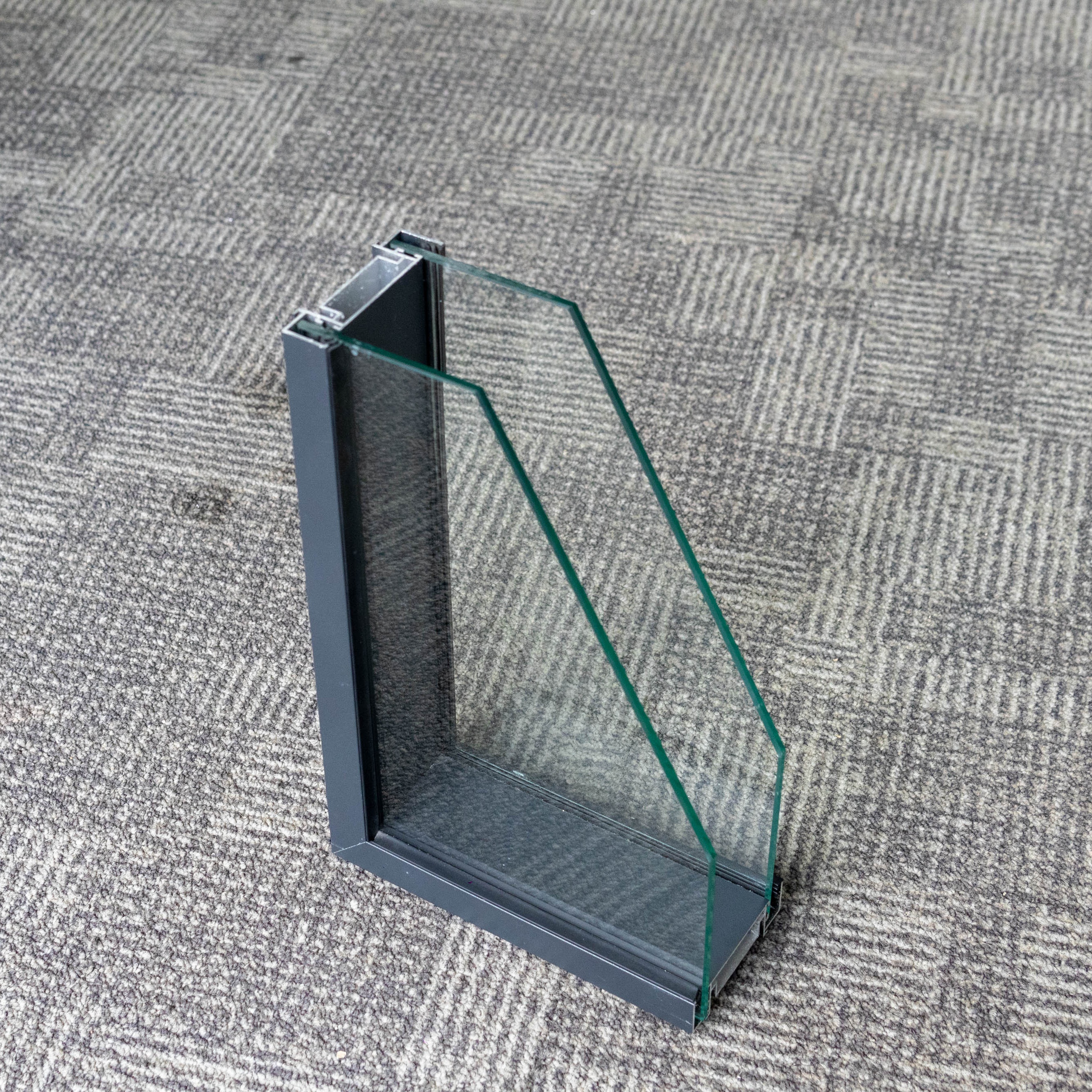

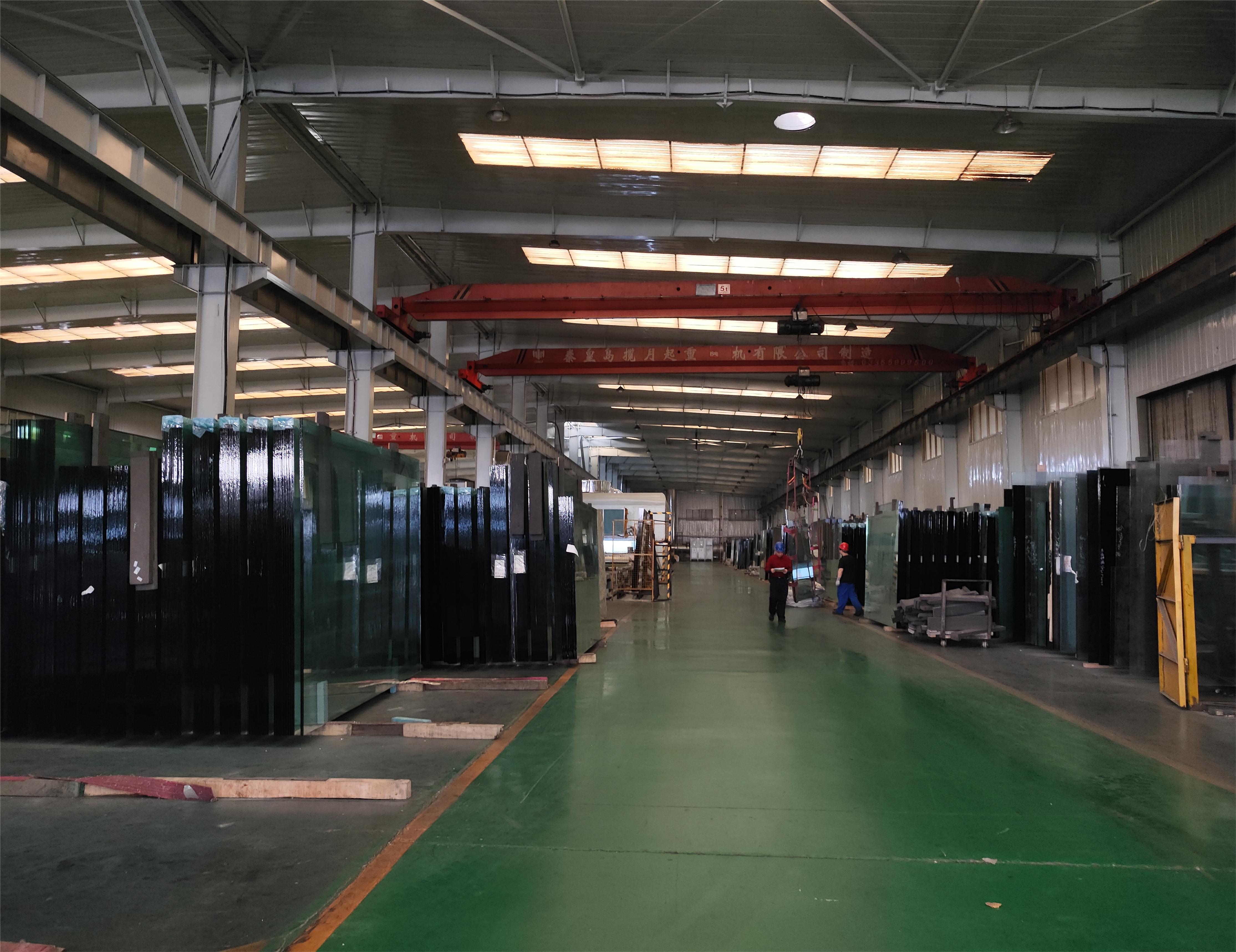

Thickness options ranging from 6mm to 20mm. Float glass grade, designed to resist impact and ensure maximum safety during transit and usage.

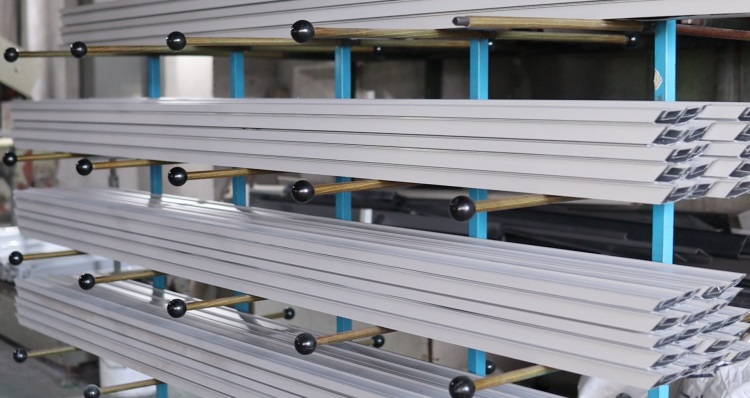

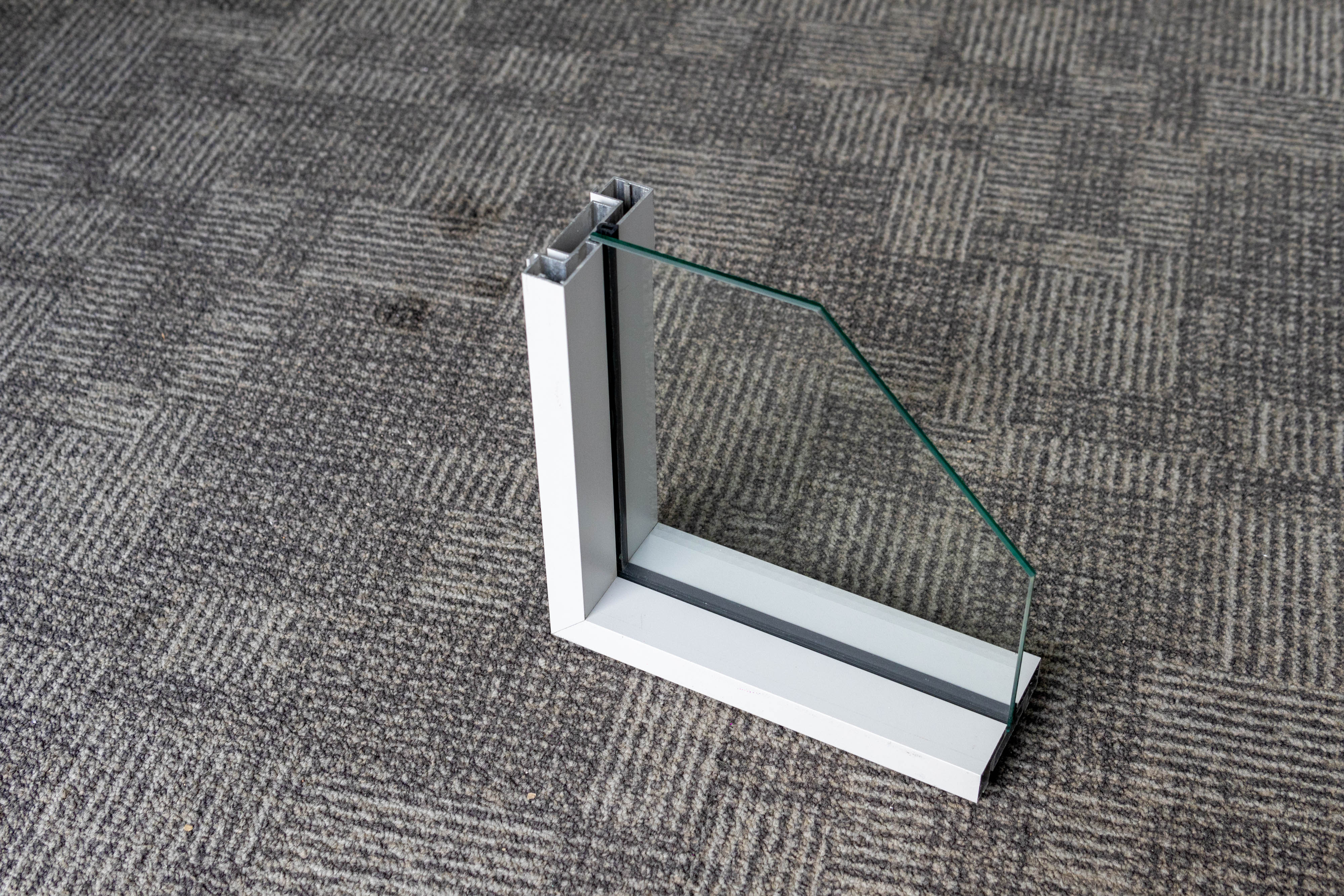

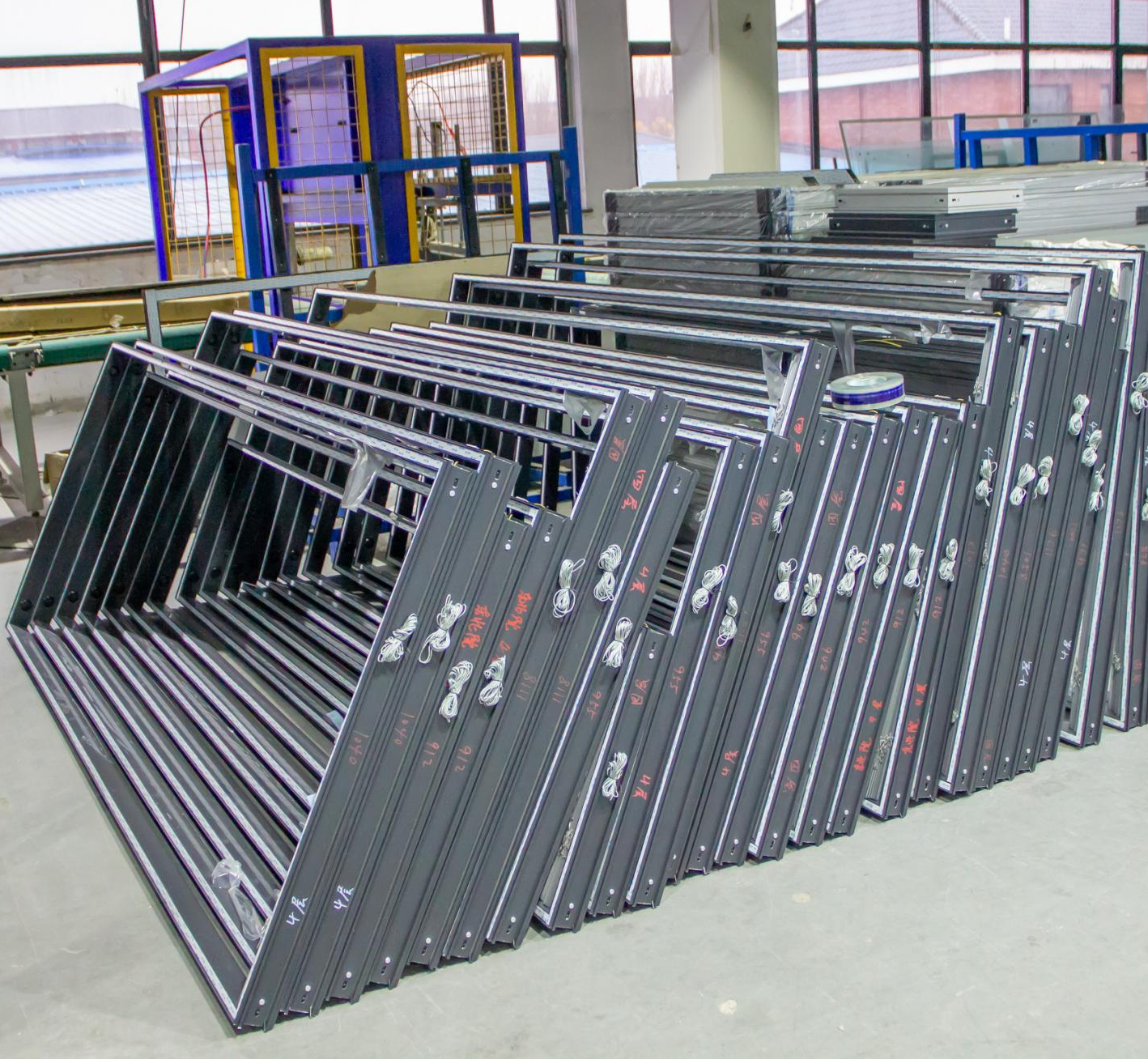

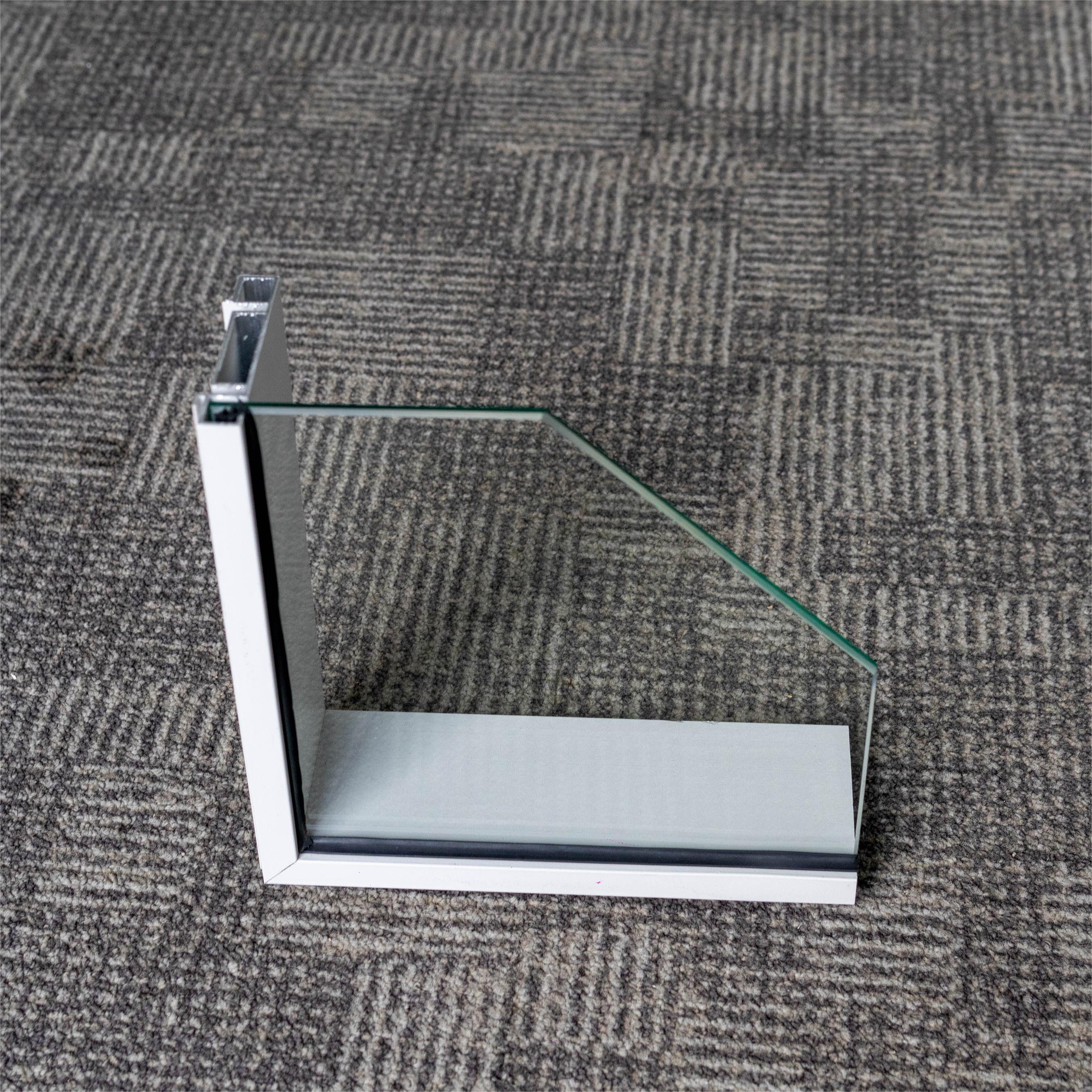

Features a 74mm width and a 1.2mm thickness profile. The visible surface of the framed profile measures a clean 8mm.

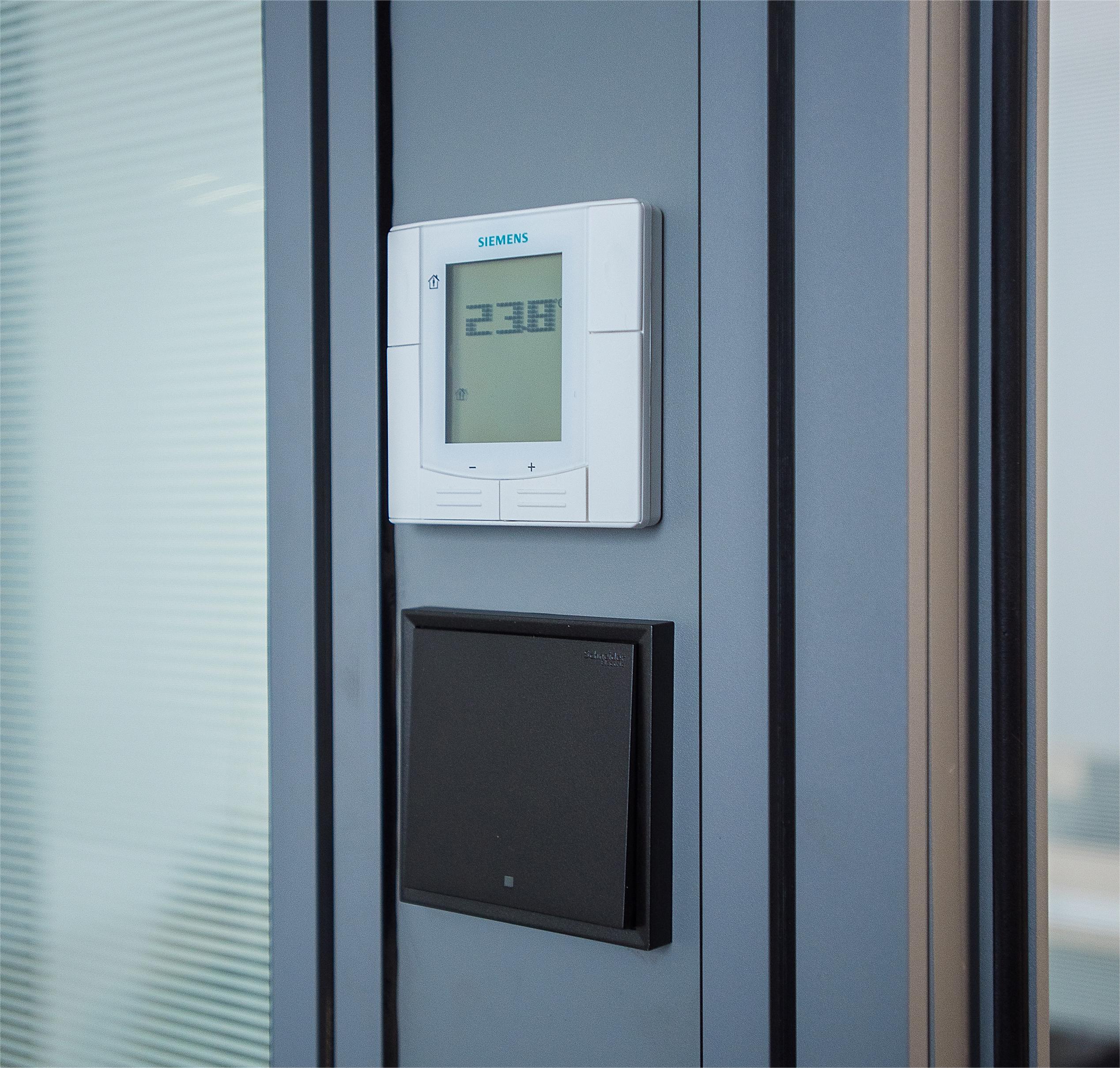

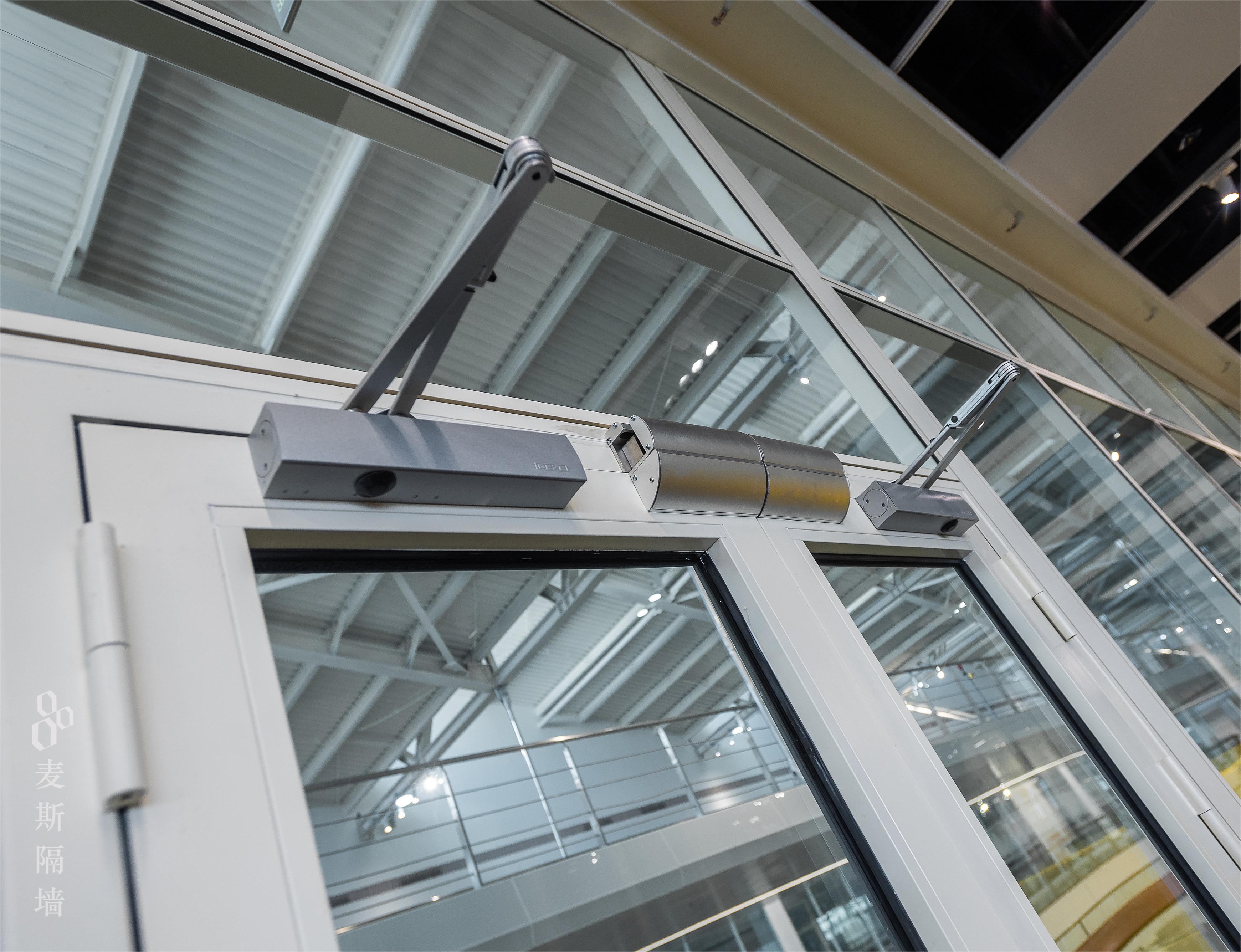

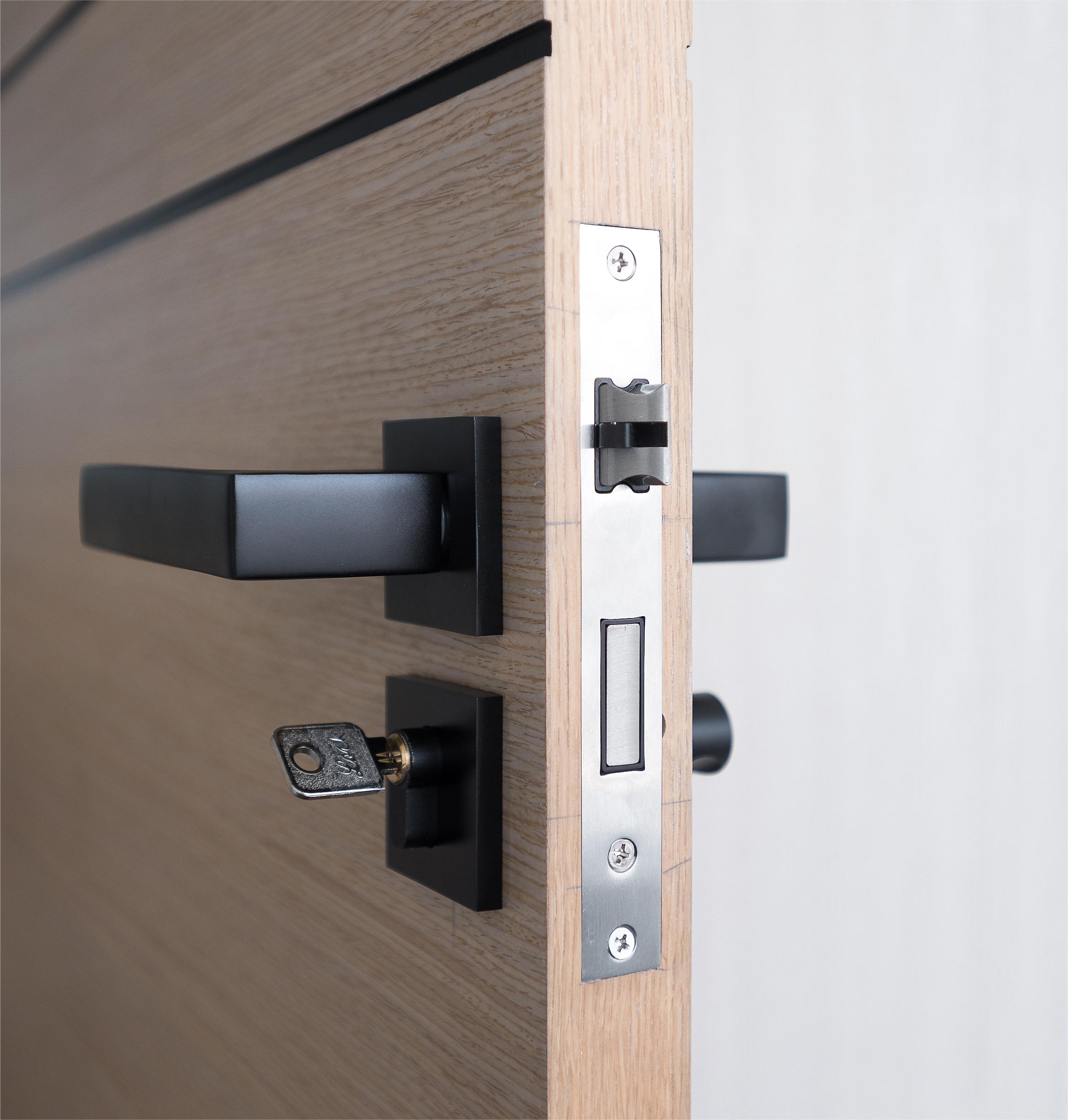

Comes standard with stainless steel locks, German-engineered hinges, advanced facial recognition fingerprint locks, and smart closing mechanisms. Fully integrated with wire routing tracks for power systems.

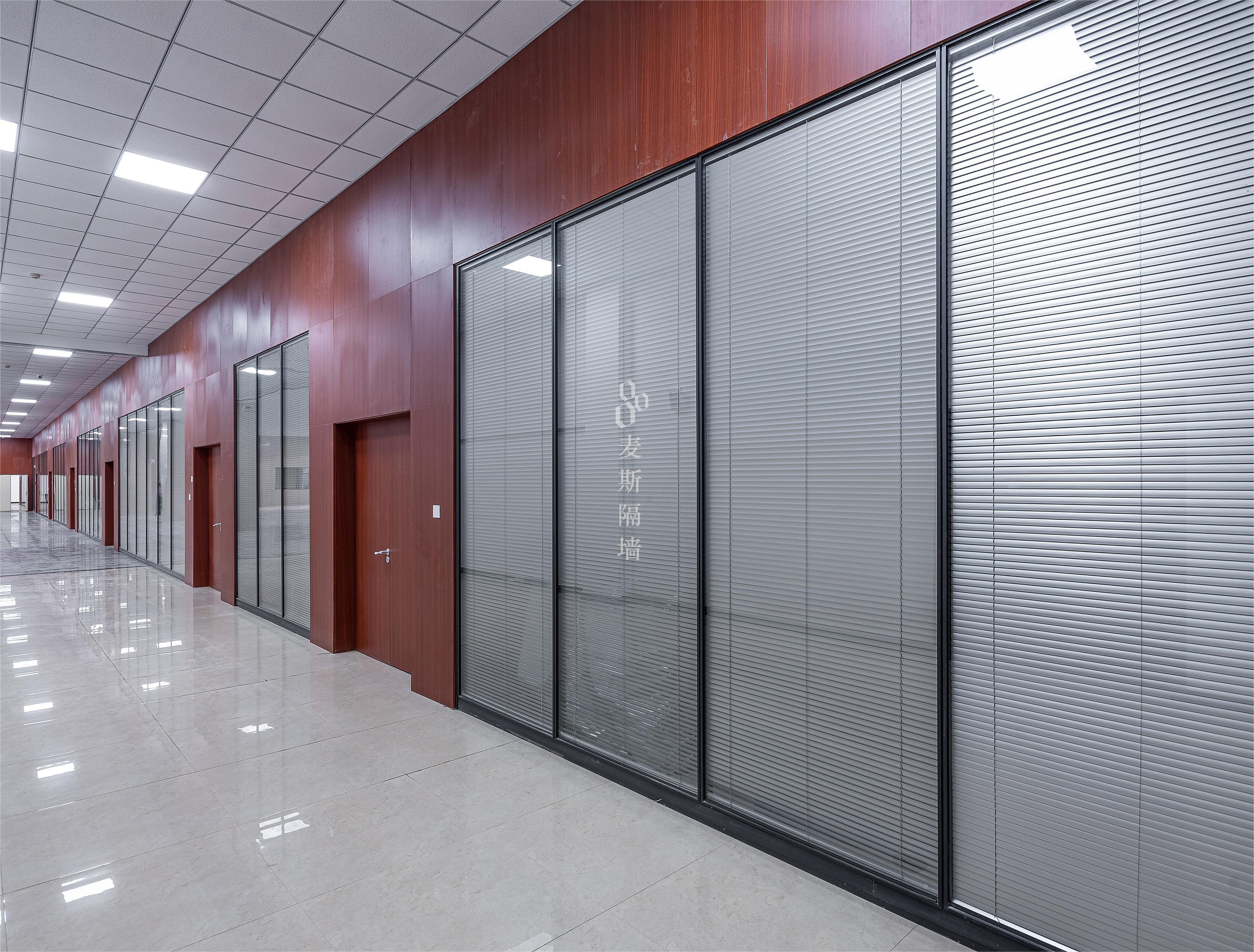

Available with carbon crystal panels, bamboo fiber boards, melamine, metals, magnesium panels, and other solid surface materials.

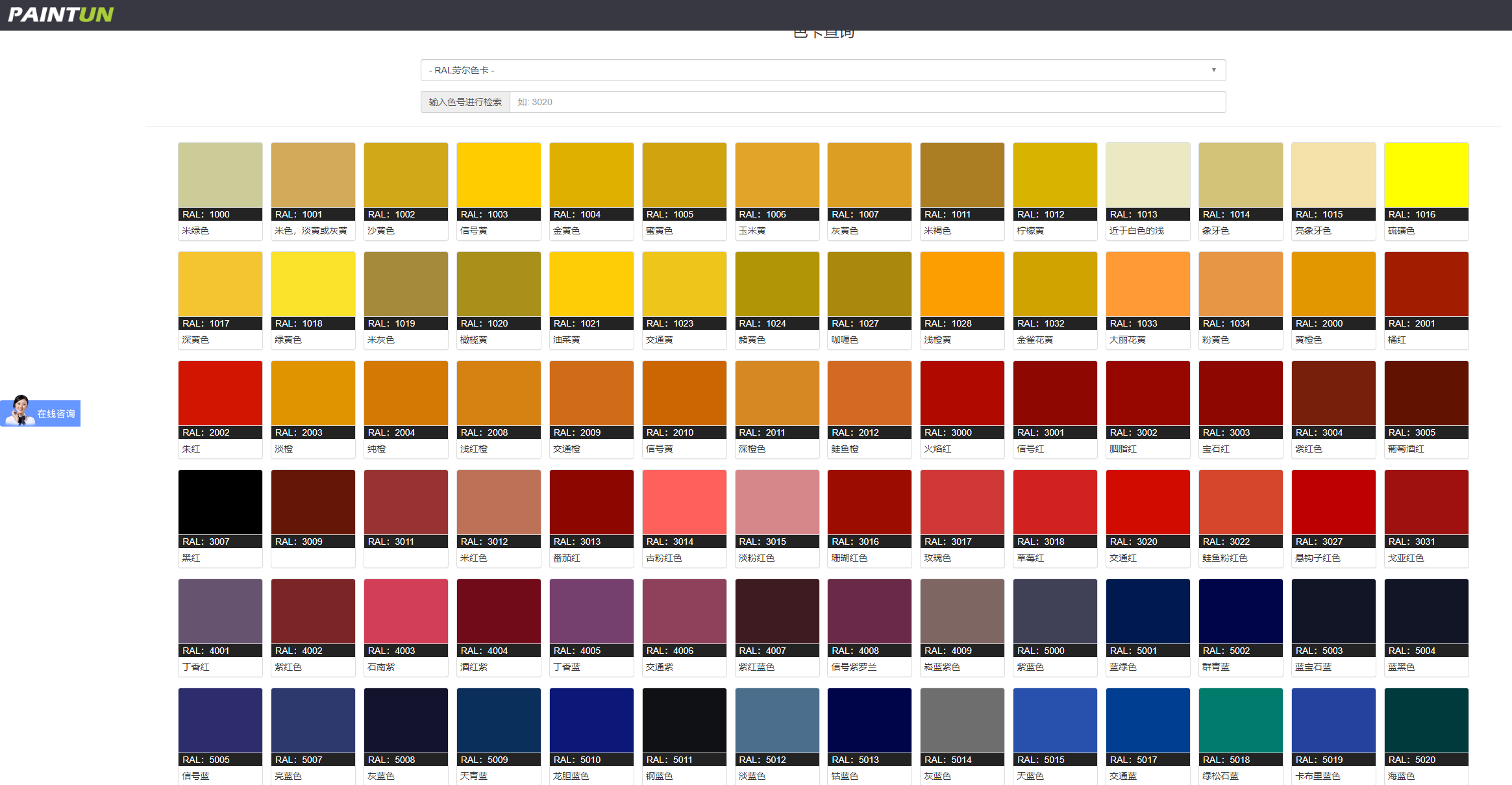

Choose and customize profiles and glass elements using any RAL color specification.

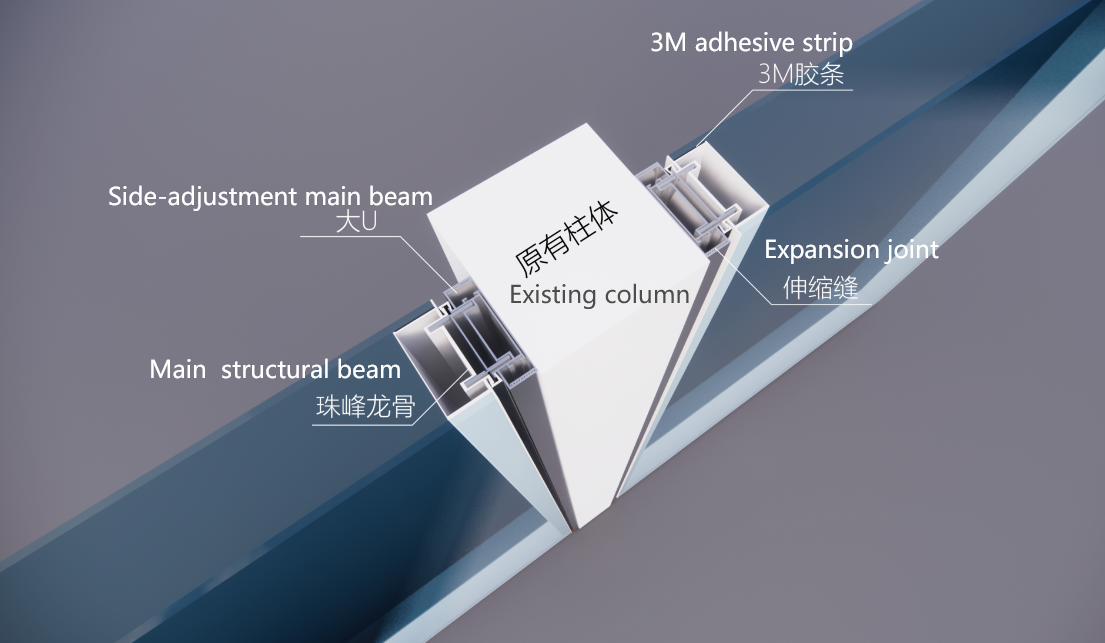

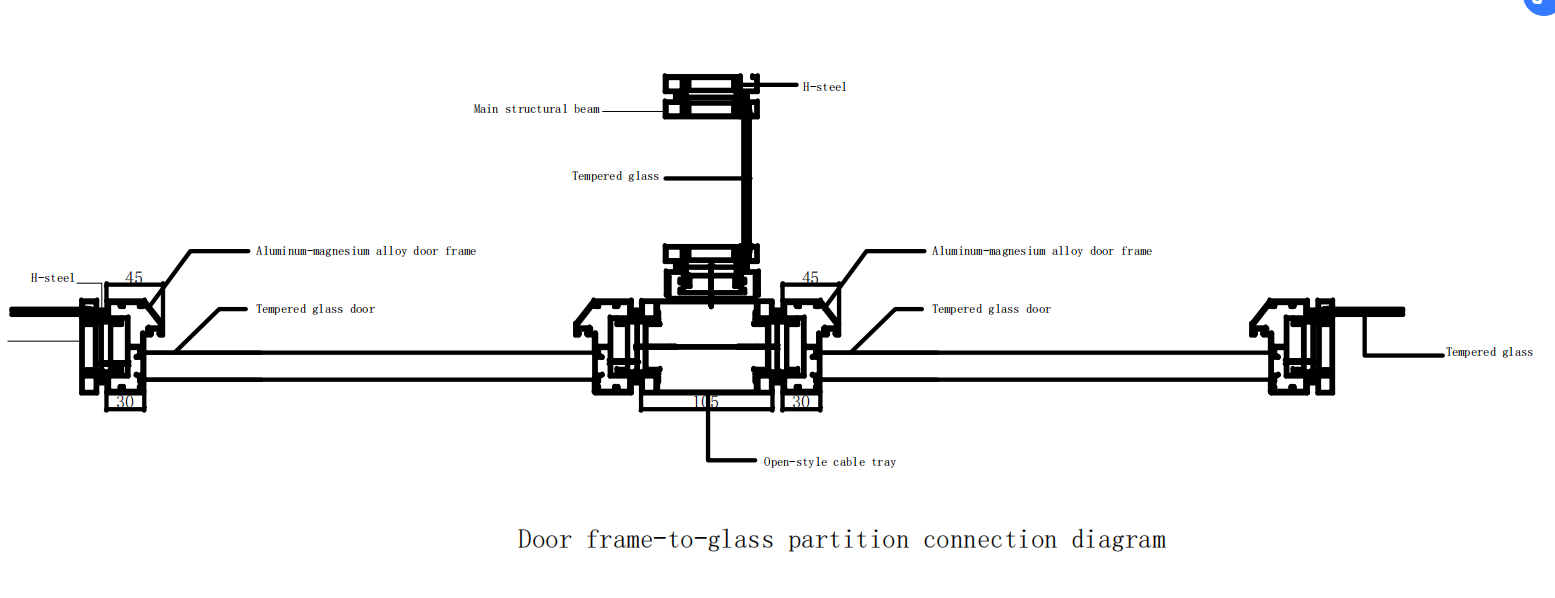

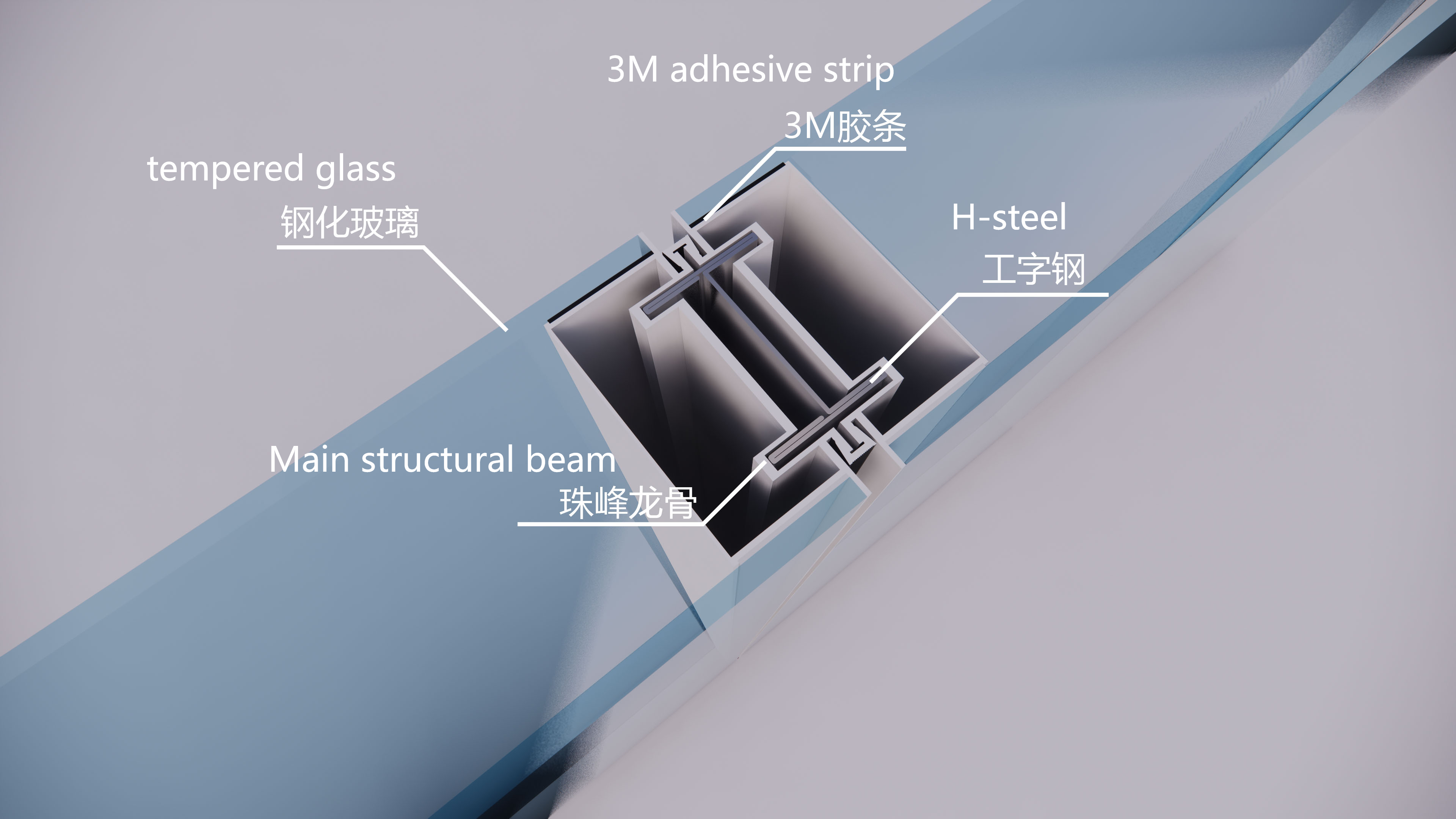

Detailed structural node diagrams are provided to assist engineers and installation teams during setup.
